feat(queryRules): add connectQueryRules connector #3597

francoischalifour · 2019-03-11T15:50:19Z

This is the 1st PR in the series "Merchandized Query Rules".

Summary

This creates the connectQueryRules connector, responsible for handling Algolia Query Rules features.

Motivation

Implementing Query Rules inside InstantSearch allows users to promote results and translate search intent with minimal setup and configuration.

Query Rules is a powerful feature in the Algolia engine that is complex to implement with InstantSearch. This feature is often used on E-commerce websites but requires developers to use low-level primitives in our libraries.

Users often need to adapt the search experience based on specific queries (e.g. showing a banner to promote a brand new MacBook). This is possible by creating new rules (either on the Algolia dashboard, via the API clients or the REST endpoints). These rules can return custom data as JSON format. The Algolia API returns this data as userData.

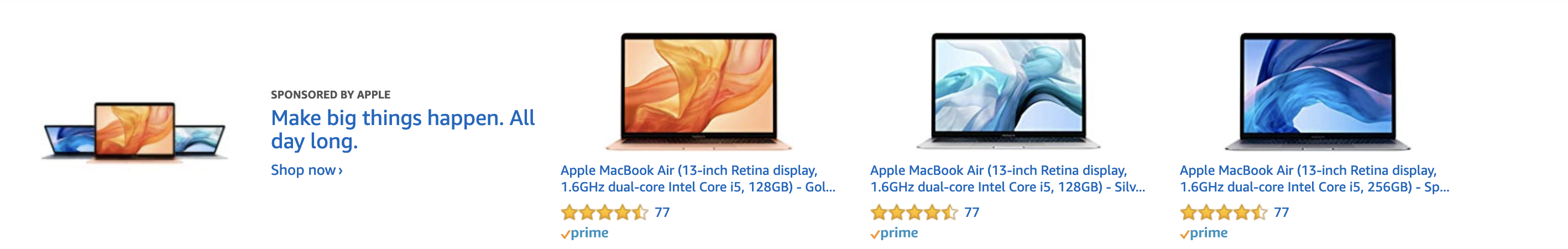

Banner promoting results on Amazon

Query Rules offer a custom experience based on rule contexts. You might want to customize the users' experience based on the filters of the search (e.g. you're visiting the "Mobile" category). This is achieved by setting a context when creating a rule and providing the API parameter ruleContexts when searching. Specifying ruleContexts at search time creates a lot of friction without dedicated API for the developer (this is doable via the internal helper or with the configure widget).

Implementation

The connector gets the results from the helper and passes the userData array to the widgets. I decided to keep the name userData in the connector, and not items in case we want to expose more objects that could also be called items. If you think this is safe enough, we can rename userData to items.

The connector is also responsible for manipulating the ruleContexts with the helper to configure search parameters.

Connector usage

Two widgets will be based on this connector:

When refining an item in a refinement list for example, this will trigger 2 network requests because of this implementation.

Send request to refine the filter (see connectRefinementList implementation)

Send request with the new ruleContexts (this line)

I'm not aware of any current way of batching this kind of requests in InstantSearch.

Right now there is none. It's fine for now, we can add the batch to the list of things that the helper can do for us.

Actually after talking a bit with Marie & Julien it might be problematic. We can have a blink:

select the refinement -> a request is triggered

render with the results, context is applied -> a new request is triggered

a query rule is triggered based on the context that set a new filter

render with other results, which means that at the step 2 we get stalled results

Is that an acceptable tradeoff for now? (I would say so)

It worth trying with a query rule that alter the results to see the actual impact. We can decide then if it's a tradeoff that is acceptable or not.

I promoted the movie "Gone girl" to position 2 in this movie demo when you click on the genre "Drama".

There's indeed a flash, which is noticeable.

Haroenv · 2019-03-11T16:13:48Z

The connector gets the results from the helper and passes the userData array to the widgets. I decided to keep the name userData in the connector, and not items in case we want to expose more objects that could also be called items. If you think this is safe enough, we can rename userData to items.

Makes sense to me!

src/connectors/query-rules/connectQueryRules.ts

src/connectors/query-rules/__tests__/connectQueryRules-test.ts

src/connectors/query-rules/connectQueryRules.ts

samouss · 2019-03-12T12:21:55Z

src/connectors/query-rules/connectQueryRules.ts

+  const previousRuleContexts = helper.getQueryParameter('ruleContexts');
+
+  if (!isEqual(previousRuleContexts, ruleContexts)) {
+    helper.setQueryParameter('ruleContexts', ruleContexts).search();


Right now there is none. It's fine for now, we can add the batch to the list of things that the helper can do for us.

src/connectors/query-rules/connectQueryRules.ts

src/lib/utils/checkRendering.ts

src/types/instantsearch.ts

src/connectors/query-rules/__tests__/connectQueryRules-test.ts

samouss · 2019-03-15T12:04:59Z

src/connectors/query-rules/connectQueryRules.ts

+  const previousRuleContexts = helper.getQueryParameter('ruleContexts');
+
+  if (!isEqual(previousRuleContexts, ruleContexts)) {
+    helper.setQueryParameter('ruleContexts', ruleContexts).search();


Actually after talking a bit with Marie & Julien it might be problematic. We can have a blink:

select the refinement -> a request is triggered

render with the results, context is applied -> a new request is triggered

a query rule is triggered based on the context that set a new filter

render with other results, which means that at the step 2 we get stalled results

francoischalifour · 2019-03-20T12:31:59Z

The queryRuleContext widget, responsible for setting ruleContexts based on tracked filters, reaches a technical limitation right now that might be problematic.

We internally need to trigger two requests because of the way the JS helper is designed, as explained in #3597 (comment).

I reproduced the behavior in the Query Rules demo. To reproduce:

Click on the genre "Drama"
See two different result sets loading one after the other

This is an unwanted behavior because:

There's a flash in the UI (even more noticeable on slow networks)
It triggers two requests → undesirable for customers

Some work is being done on the helper because of the needs of Federated Search. We could add "batching requests" in the features that we want the helper to support.

The release of the queryRuleContext widget will therefore be postponed until the "batching request" feature lands in the helper.

The queryRuleCustomData widget can still be shipped without this.

We can either keep or temporarily remove the ruleContexts-related feature from the Query Rules connector.

francoischalifour · 2019-03-21T09:16:21Z

⬆️ I removed the ruleContexts-related features from the connector and only commented the tests so that we can reuse them when we're ready to reimplement these features (I didn't skip the tests because TypeScript was complaining about the now non-existant trackedFilters and transformRuleContexts options).

src/connectors/query-rules/__tests__/connectQueryRules-test.ts

src/connectors/query-rules/connectQueryRules.ts

* chore(storybook): add support for playgrounds (#3599) * feat(queryRules): add queryRuleCustomData widget (#3600)

# [3.3.0](v3.2.1...v3.3.0) (2019-04-11) ### Bug Fixes * **connectQueryRules:** improve tracked refinement type ([#3648](#3648)) ([e16ad57](e16ad57)) * **currentRefinements:** don't rely on ([#3672](#3672)) ([cd64bcf](cd64bcf)) * **queryRuleCustomData:** add default template ([#3650](#3650)) ([83e9eaa](83e9eaa)) * **QueryRuleCustomData:** pass data as object to templates ([#3647](#3647)) ([b8f8b4e](b8f8b4e)) * **queryRules:** fix types and stories ([#3670](#3670)) ([ba6e2e6](ba6e2e6)) * **routing:** apply windowTitle on first load ([#3669](#3669)) ([d553502](d553502)), closes [#3667](#3667) * **routing:** support parsing URLs with up to 100 refinements ([#3671](#3671)) ([6ddcfb6](6ddcfb6)) * **RoutingManager:** avoid stale uiState ([#3630](#3630)) ([e1588aa](e1588aa)) * **types:** improve InstantSearch types ([#3651](#3651)) ([db9b91e](db9b91e)) * **ua:** Update the User-Agent to use the new format ([#3616](#3616)) ([ab84c57](ab84c57)) ### Features * **infiniteHits:** add previous button ([#3645](#3645)) ([2c9e38d](2c9e38d)) * **queryRules:** add connectQueryRules connector ([#3597](#3597)) ([924cd99](924cd99)), closes [#3599](#3599) [#3600](#3600) * **queryRules:** add context features to Query Rules ([#3617](#3617)) ([922879e](922879e)), closes [#3602](#3602) ### Reverts * feat(infiniteHits): add previous button ([214c0fc](214c0fc))
