This repository represents a template workspace for bndtools, it is the easiest way to get started with OSGi enRoute. The workspace is useful in an IDE (bndtools or Intellij) and has support for continuous integration with gradle.
##Base Tutorial
The Base Tutorial is a typical OSGi project. Within this project, a simple server application that interacts with an OSGi console shell is developed.
##Prerequisites
The following software is needed:
- Java 8
- Eclipse Mars
- [Git] (https://git-scm.com/book/en/v2/Getting-Started-Installing-Git)
- [Bndtools] (http://bndtools.org/installation.html#update-site) version 3.1.0 or later.
Details on how to install bndtools can be found on the web site http://bndtools.org/installation.html
Bndtools can be installed from Eclipse Marketplace. Alternatively, it can be installed from:
https://dl.bintray.com/bndtools/bndtools/latest
You can find the details how to install bndtools on the bndtools website
##The Bnd Workspace
OSGi enRoute requires that the files belonging to a specific project are grouped in a bnd workspace. A Bnd workspace is a directory with a cnf folder and a number of projects. The cnf folder contains a build.bnd file and a ext directory which together define the workspace properties. A Bnd workspace is like a module; it imports bundles (and JARs) from a repository and it exports bundles to the same or another repository. On the inside we have projects that are private to the workspace. The projects should be cohesive so that they can share information via the cnf project.
###The GitHub workspace
The GitHub workspace is intended for sharing on GitHub. The bnd template workspace can be obtained from GitHub.
$ cd ~/git
$ git init tech.ghp.eval
$ cd tech.ghp.eval
$ git fetch --depth=1 https://github.com/GhPTech/workspace master
$ git checkout FETCH_HEAD -- .
###The Eclipse workspace
The Eclipse workspace stores metadata with personal preferences and history, which should not be shared through GitHub. Bnd is able to build independent of Eclipse preferences.
In order to create/select an Eclipse workspace, select File/Switch Workspace/Other ... fill in the path accordingly. For the present tutorial the Eclipse Workspace should be as follows:
~/eclipse/tech.ghp.eval
###Workbench view
In order to get the Workbench view, push the Workbench button from On the top right corner of Eclipse window.
###Import the Bnd Workspace
The best way to work with projects in Eclipse is to not store them in the Eclipse workspace folder but import them from the GitHub workspace.
From the context menu (right click) select
@/Import -> General/Existing Projects into Workspace
then select the corresponding Bnd Workspace from GitHub. For the present tutorial, the following path:
~/git/tech.ghp.eval
Finish the import process,by pushing the Finish button.
This will import the cnf project into your Eclipse workspace.
####The Bndtools perspective
The Bndtools perspective gives access to specific Bnd tools. For this perspective, from the main menu, select
Window/Perspective/OpenPerspective/Bndtools
##OSGi enRoute project templates
OSGi enRoute has a special templates for various projects types:
- API projects .api, defines the service
- Provider projects .provider, .adapter, implements a project
- Test Projects .test, runs tests inside the framework
- Application projects .application, bind together a set of components and parametrizes them
###API Project
The first step in creating a service is to define the Application Programming Interface (API). The API is like a service contract. The best practice is to give service contracts their own projects so they can be easily shared. For API projects, the sufix of the name should be .api. OSGi enRoute recognises this suffix and will select the appropriate layout for the API project.
To create the API project, from the main menu select
File/New/Bndtools Project
select the OSGi enRoute template and give the following name:
tech.ghp.eval.api
This creates a project with all the options set to treat it as an API project. The templates already created the Eval interface in the right package.
Fill in the following source code:
package tech.ghp.eval.api;
/**
* A service that evaluates an expression
*/
public interface Eval {
/**
* Evaluates an expression and returns the result
*/
double eval(String expression) throws Exception;
}
In the generated folder of the project, the file
tech.ghp.eval.api.jar
was created. This file contains the Manifest, which was generated by bnd. Have look at the contents.
Manifest-Version: 1.0
Bnd-LastModified: 1461049371868
Bundle-Description: This is a project. An API project should in genera
l not contain any implementation code.A OSGi enRoute template.
Bundle-ManifestVersion: 2
Bundle-Name: tech.ghp.eval.api
Bundle-SymbolicName: tech.ghp.eval.api
Bundle-Version: 1.0.0.201604190702
Created-By: 1.8.0_73 (Oracle Corporation)
Export-Package: tech.ghp.eval.api;version="1.0.0"
Require-Capability: compile-only,osgi.ee;filter:="(&(osgi.ee=JavaSE)(version=1.8))"
Tool: Bnd-3.1.0.201512181341
The Manifest shows that the package tech.ghp.eval.api is exported. This means that this package is available for other bundles. The exports can be examined in the Contents tab of thebnd.bnd file.
The manifest shows how the package tech.ghp.eval.api is exported and made available to other bundles.
The Contents tab of the bnd.bnd file shows the Export packages list.
The version of this package is defined in the file package-info.java.
@org.osgi.annotation.versioning.Version("1.0.0")
package tech.ghp.eval.api;
The modifications of this package should be reflected in the specified version. Any modification that affects the public API must result in a rebuild of the bundle of the provider(the party that implements the Eval interface). For example, if the version goes to 1.1, the bundels that implemented 1.0 should no longer be compatible. In order to assure that the proper version ranges are used, the following annotation should be added:
@ProviderType
public interface Eval{ ... }
By making this annotation, the bndtool will automatically ensure that the providers/implementers of the respective interface use semantic versioning to import the package with a minor range, 1.0, 1.0.
The default implemented interfaces of the API (usually listener like interfaces) are consumer type and could be annotated as
@ConsumerType
The bnd project is driven by the bnd.bnd file, which defines the version, the build path and which packages should go into the bundle. For example, the source of the bnd.bnd file is as follows:
Bundle-Version:1.0.0.${tstamp}
Bundle-Description: \
This is project. An API project should in general not contain any \
implementation code.\
\
${warning;Please update this Bundle-Description in tech.ghp.eval.api/bnd.bnd}
Export-Package: \
tech.ghp.eval.api;provide:=true
Require-Capability: \
compile-only
-buildpath: \
osgi.enroute.base.api;version=1.0
-testpath: \
osgi.enroute.junit.wrapper;version=4.12
###Provider Project
As the API (the service contract) is defined, a provider (an implementation) of the proposed service is required. The provider implements the API so the users (the clients) can employ the service. The provider projects have the .provider suffix. The root name should be the same as the workspace name.
To create a provider project, from the main menu select
File/New/Bndtools Project
select the OSGi enRoute template and give the following name:
tech.ghp.eval.provider
The OSGi enRoute template creates the EvalImpl.java file, which includes the @Component annotation in order to setup the Declarative Service (DS) and the EvalImpl class.
####Implementation
As the EvalImpl component class implements the Eval interface, this implementation needs to be register as an Eval service. This registration is specified as follows:
@Component(name = "tech.ghp.eval")
public class EvalImpl implements Eval { }
####Build Path
As the Eval interface is not a part of the provider project, the compilation and the build of the code cannot be carried out. A build path to the api project has to be provided to the bnd.bnd file.
The buildpath can be edited with the Build tab of the bnd.bnd file by adding the tech.ghp.eval.api bundle. Alternatively, the buildpath can be edited with the Source tab as
-buildpath: \
osgi.enroute.base.api;version=1.0,\
tech.ghp.eval.api;version=latest
####Imports
The bnd.bnd files defines the dependencies of the bundle. It consists of
- Private packages: packages only available the current bundle;
- Exported packages: packages exported to other bundles;
- Imported packages: packages provided to the current bundle;
In order to recognise the Eval type, the implementation class EvalImpl has to import the package tech.ghp.eval.api to get the Engineering interface.
import tech.ghp.engineering.api.Eval;
In this case, the user of the Eval service would depend on two bundles: tech.ghp.eval.api and tech.ghp.eval.provider.
To avoid this double dependency, the API bundle can be exported to the provider bundle. In order to export the API bundle, add the package tech.ghp.eval.api to the Export Packages of the 'bnd.bnd' file of the provider project.
####Code
The Engineering interface specifies the eval method as follows
public interface Eval {
double eval(String expression) throws Exception;
}
This method needs to be provided by the EvalImpl class.
To begin with, evaluation of trivial additions and subtractions of constants are provided as follows:
@Component(name = "tech.ghp.eval")
public class EvalImpl implements Eval {
Pattern EXPR = Pattern.compile("\\s*(?<left>\\d+)\\s*(?<op>\\+|-)\\s*(?<right>\\d+)\\s*");
@Override
public double eval(String expression) throws Exception {
Matcher m = EXPR.matcher(expression);
if ( !m.matches())
throw new IllegalArgumentException("Invalid expression " + expression);
double left = Double.valueOf( m.group("left"));
double right = Double.valueOf( m.group("right"));
switch( m.group("op")) {
case "+": return left + right;
case "-": return left - right;
}
return Double.NaN;
}
}
The provider can both implement and/or be a client of the interfaces in a service package. The provider and the client roles have consequences on the versioning of the packages. Any change in the service contract (API) require an update of the privider (implementation).
The best practice in OSGi for a provider is to include service (API) codes and export it. However, the provider code and the api codes should not be part of the same project because the compilation of the api would expose the provider (implementation) code.
###Testing the Provider with (Standard) JUnit
The implementation (the provider) of the service should be tested before it is released. Testing saves time and resources in the later phases of the development process.
####JUnit
A provider should always have unit (white box) tests. These tests have access to private information about the implementation details and proprieties of the components that are not part of the public API. When these tests fail they prohibit the release of the project.
The OSGi enRoute template includes a test case in the test directory. The EvalImplTest test is placed in the same package as the EvalImpl class, but is not part of the bundle. As it is in the same package, it has access at the private information of the EvalImpl class.
For the present template a simple test will be run as follows:
package tech.ghp.eval.provider;
import junit.framework.TestCase;
public class EvalImplTest extends TestCase {
public void testSimple() throws Exception {
EvalImpl t = new EvalImpl();
assertEquals( 3.0, t.eval("1 + 2"));
}
}
To run the test from the context menu (right click) select
@Run As/JUnit Test
For debugging, breakpoints can be inserted at the code lines where the running programe should stop. Tu run a test in debug mode, select
@Debug As/JUnit Tests
The JUnit runner creates a new VM with the same build-path as the class it tests. All the tests dependencies must be on the build-path in order to run the tests.
- JUnit 4.x requires annotations on the test class. Extensions of TestCase in the class are not necessary (annotations are ignored).
- JUnit 3.x must extend TestCase (usually the easiest way to write tests)
##Running the Code
As the API service is successfully implemented and tested by the provider, it is ready to be run and called in a framework.
In OSGi this is usually done by creating a command in the Apache Felix Gogo Shell. If given permission, the Gogo shell can call a given method of a given service. The permission is granted by adding service proprieties as follows:
@Component(
name = "tech.ghp.eval",
property = {
Debug.COMMAND_SCOPE + "=test",
Debug.COMMAND_FUNCTION + "=eval"
}
)
These service proprieties register the test:eval command with Gogo. The scope part ('test') is required to disambiguate commands (in case the 'eval' command already exists within Gogo bundle).
The Runtime Environment defines what OSGi Framework should run, how the framework should be configured, what support bundles should be loaded and some other parameters.
The Run tab of the bnd.bnd file is designed to set this information and consists of the following UI parts:
-
Core Runtime: allows to select the framework and an execution environment.
-
Run Requirements: specifies the requirements used for a set of runtime bundles from available repositories. The assembly of these bundles is resolved out by the bndtools.
For the present template the framework should be set to 'org.eclipse.org' (Eclipse Equinox) and the execution environment to 'JavaSE-1.8'.
The Run Requirements contains by default the current bundle 'tech.ghp.eval.provider'.
In order to call the 'Eval' service, the command shell provided by Apache Felix is employed. For this purpose the bundle 'org.apache.felix.gogo.shell' has to be included in the Run Requirements.
-runrequires: \
osgi.identity;filter:='(osgi.identity=tech.ghp.eval.provider)',\
osgi.identity;filter:='(osgi.identity=org.apache.felix.gogo.shell)'
The required bundles are analysed and assembled by bndtools (at the push of the Resolve button), which tries to satisfy the requirements.
The 'Resolution Results', the 'Optional Resources' and the 'Reasons' of the resolution are presented. These bundles are added to the Run Bundles list.
-runbundles: \
tech.ghp.engineering.provider;version=snapshot,\
org.apache.felix.configadmin;version='[1.8.6,1.8.7)',\
org.apache.felix.gogo.runtime;version='[0.16.2,0.16.3)',\
org.apache.felix.gogo.shell;version='[0.10.0,0.10.1)',\
org.apache.felix.log;version='[1.0.1,1.0.2)',\
org.apache.felix.scr;version='[2.0.0,2.0.1)',\
org.eclipse.equinox.metatype;version='[1.4.100,1.4.101)',\
org.osgi.service.metatype;version='[1.3.0,1.3.1)'
###Launching
The application can be launched by pushing the Run OSGi or Debug OSGi button of the Run tab of the bnd.bnd file.
In the 'Gogo shell' of the Eclipse console type the following command:
*g! test:eval 2+2*
The result of this simple evaluation command is displayed on the following line of the Gogo shell
*4.0*
###Updating
It is possible to change the source code while the application is running. For example, if more opperations are added to the EvalImpl class:
Pattern EXPR = Pattern.compile("\\s*(?<left>\\d+)\\s*(?<op>\\+|-|\\*|/)\\s*(?<right>\\d+)\\s*");
....
switch (m.group("op")) {
case "+": return left + right;
case "-": return left - right;
case "*": return left * right;
case "/": return left / right;
}
As the source code is changed, the IDE compiles the class and the bnd builds the bundle. A changed bundle is detected by the launcher and the updated version is deployed to the running framework.
When the application is launched, the launcher is started in a remote process and gets the 'proprieties' file created by bndtools (what framework to use, what bundles to load, etc.). Once the launcher has initialised everything, it starts the bundles and watches the proprieties file. If the proprieties file changes, the launcher reloads and calculates a delta and applies it to the running framework (it does not work for all information).
##Debugging
###Breakpoints
Debugging can be done by including breakpoints on the lines where the code should stop during execution. This allows to follow variable's names and values at various phases of the execution process.
###Apache Felix Web Console
Another debugging tool is the Apache Felix Web Console. It provides insights on the running service.
The Apache Felix Web Console is available on the list of Repositories under the name 'osgi.enroute.webconsole.xray.provider'. To use it, this bundle has to be included in the Run Requirements list. This plugin drags in the web console, the Jetty web server, XRay, and other required bundles. At the push of the Resolve button, the required bundles are analysed and assembled by bndtools. As a result the following bundels are added to the the Run Bundles list:
-runbundles: \
...
osgi.enroute.bostock.d3.webresource;version='[3.5.6,3.5.7)',\
osgi.enroute.dto.bndlib.provider;version='[1.0.0,1.0.1)',\
osgi.enroute.executor.simple.provider;version='[1.0.0,1.0.1)',\
osgi.enroute.logger.simple.provider;version='[1.1.1,1.1.2)',\
osgi.enroute.web.simple.provider;version='[1.3.3,1.3.4)',\
osgi.enroute.webconsole.xray.provider;version='[2.0.0,2.0.1)'
The web console can be accessed with a browser at the following address:
http://localhost:8080/system/console/xray
The username is admin and the password is admin.
####XRay
A visualisation of the service layer can be obtained with the XRay web console plugin.
The triangle represents the service. Connections to the point of the triangle indicate the registration (points to the object that receives the method calls from the service users). The base of the triangle indicate the client(s) (call the methods of the service). The sides of the triangle indicate listeners of the service.
The following color codes are used:
- yellow: service is registered and in use
- white, solid border: service is registered and not in use
- white, dashed border: service is not registered and needed by other bundles
- red: serious failure of the service
- orange: service is exported or imported
The triangles represent service types, not instances.
XRay also tracks eventual errors logged by the bundles. It marks the bundle with a warning sign and the log message.
Various tabs and subtabs can be selected in order to get an overview of the running framework:
- Main
- HTTP Service
- X-Ray
- OSGi
- Bundles
- Configurations
- Log Service
- Services
- Web Console
- Licenses
- System Information
The XRay plugin returns a page with Javascript that pulls the server at given time intervals. The server returns the data which is rendered by a javascript library (d3.js).
Each service type is represented by a rounded corner yellow box, with
##Tesing in OSGi
In order to test the service contracts, OSGi JUnit tests are run. A sperate project is needed for testing. The contentent of these tests should be available to other projects.
Select New/Bndtools Project/, choose OSGi enRoute template and name it 'tech.ghp.eval.test'.
The OSGi enRoute template provides a simple test case with Bundle Context, but does not include the Eval service.
package tech.ghp.eval.test;
import org.junit.Assert;
import org.junit.Test;
import org.osgi.framework.BundleContext;
import org.osgi.framework.FrameworkUtil;
public class EvalTest {
private final BundleContext context = FrameworkUtil.getBundle(this.getClass()).getBundleContext();
@Test
public void testEval() throws Exception {
Assert.assertNotNull(context);
}
}
In order to include the Eval service the following code is needed:
<T> T getService(Class<T> clazz) throws InterruptedException {
ServiceTracker<T,T> st = new ServiceTracker<>(context, clazz, null);
st.open();
return st.waitForService(1000);
}
Assertion of service existence is also needed:
Assert.assertNotNull(getService(Eval.class));
As the Eval class is recognised by the current project, the tech.ghp.eval.api project needs to be included on the BuildPath of the bnd.bnd file (tech.ghp.eval.test project). Also import of the Eval and the ServiceTracker classes need to be done into the source code EvalTest file.
import org.osgi.util.tracker.ServiceTracker;
import tech.ghp.eval.api.Eval;
Finally, the dependencies need to be resolved from the Run tab of the bnd.bnd file. As a result the following bundles will be added into the Run Bundles list:
-runbundles: \
tech.ghp.eval.provider;version=snapshot,\
tech.ghp.eval.test;version=snapshot,\
org.apache.felix.configadmin;version='[1.8.6,1.8.7)',\
org.apache.felix.log;version='[1.0.1,1.0.2)',\
org.apache.felix.scr;version='[2.0.0,2.0.1)',\
org.eclipse.equinox.metatype;version='[1.4.100,1.4.101)',\
org.osgi.service.metatype;version='[1.3.0,1.3.1)',\
osgi.enroute.hamcrest.wrapper;version='[1.3.0,1.3.1)',\
osgi.enroute.junit.wrapper;version='[4.12.0,4.12.1)'
To run the test select the 'bnd.bnd' file and from the context menu (right click) select
@/Debug As/Bnd OSGi Test Launcher (JUnit)
As it is, the test only checks if the service exists. Other tests can be added as necessary. For example, to check if 2+2=4, the following test is added:
@Test
public void sum() throws Exception {
Assert.assertSame( 4, (int)getService(Eval.class).eval("2+2"));
}
This test case can be run separately from context menu of sum function as Debug As/Bnd OSGi Test Launcher (JUnit).
Test bundles are marked with the heander Test-Cases. This header contains a list with class names that contain JUnit tests. The Source tab of the 'bnd.bnd' file contains the header
Test-Cases: ${test-cases}
The ${test-cases} macro is set by OSGi enRoute template, which either extend the junit.framework.TestCase class or use the JUnit 4 annotations like @Test. In the present example, the expansion is as follows (generated/com.acme.prime.eval.test.jar):
Test-Cases: tech.ghp.eval.test.EvalTest
When a OSGI JUnit test is launched, bnd creates a new framework with the set run bundles. On the class path (for the current framework), bundle aQute.junit is added as well as the JARs listed on the -testpath. The features available for running a usual framework are also available for running a test framework, e.g. -runproprieties, -runtrace.
Once all bundles are started, the aQute.junit bundle searches for the header Test-Cases, loads the classes and run the specified tests.
If the tests are run from Eclipse JUnit framework, the bnd sets up a new framework and passes a set of classes/methods that Eclipse has chosen from a given selection. The aQute.junit will then execute only those classes/methods and report the results back to Eclipse for the JUnit view.
##Deploying the Application
The provider bundle can be used as a deployable application.
From the main menu select New/Bndtools OSGi Project, the OSGi enRoute template and name the project 'tech.ghp.iot.application'.
An .application project should contain limited amounts of code concerning the requirement that drives the final application.
By default, an application only contains a Gogo shell command (in this example IotApplication class). In the EvalImpl class, the existing API call eval, was made available as a Gogo shell command. In the present application project, the service and the call to the method of the service need to be obtained.
Getting a service is facilitated by DS; the @Reference annotation and a settler method and need to be added as follows:
@Component(
service=EvalApplication.class,
property = {
Debug.COMMAND_SCOPE + "=eval",
Debug.COMMAND_FUNCTION + "=eval"
},
name="tech.ghp.eval"
)
public class EvalApplication {
private Eval eval;
public double eval(String m) throws Exception {
return eval.eval(m);
}
@Reference
void setEval( Eval eval) {
this.eval= eval;
}
}
This class provides a dummy service that provides eval:eval command to Gogo shell (notice the difference with the command test:eval created in the provider project).
As with the provider project, the dependency on the API project has to added on buildpath as
-buildpath: \
osgi.enroute.base.api,\
tech.ghp.eval.api;version=latest
The Eval type from the API project should aslo be included as
import tech.ghp.eval.api.Eval;
###Defining the Application
The runtime requirements are defined in a special file created in the application project:
tech.ghp.eval.bndrun
This file contains information concerning the Run Requirements. By default the Run Requirements list containts the 'com.acme.prime.eval.application' bundle. For interaction with the Eval service, the bundle org.apache.felix.gogo.shell bundle should be added from the Repositories list to the Run Requirements list and the Resolve button should be pushed to identify and assemble the Run Bundles.
To check if the application runs from the Run tab of the tech.ghp.eval.bndrun file push the Debug OSGi button. This will launch the framework and run the application.
On the shell command try the following a simple (sum, subtraction, multiplication, division) evaluation:
g! eval:eval 7+7
###Debugging
A debugging friendly framework can also be used. The application project also contains the file debug.bndrun file. This file includes the tech.ghp.eval.bndrun file and it adds debug requirements.
To try this Degugging mode of running the application, open the file debug.bndrun file, resolve the dependencies by pushing the Resolve button, then push the Debug OSGi button from the upper right side of the Eclipse console. This will launch the application and display on the shell supplementary information about the runtime. This is triggered by the -runtrace flag. This can be set to false or removed, if this information is not required.
A set debugging tools such as Web console, Gogo shell, XRay, etc. are available. The running system can be inspected on a browser at the address:
http://localhost:8080/system/console/xray
The principle 'Don't Repeat Yourself (DRY)' is applied. The file debug.bndrun inherits from file tech.ghp.eval.bndrun, i.e. information already available in the later file is aslo available in the former file.
###Executable
In order to deploy the application on an other environment, an executalbe JAR is generated.
From the Run tab of the 'tech.ghp.eval.bndrun' file push the Export button and specify the path of the executable JAR.
Copy the JAR into the target environment, open a terminal and check the Java version with the command
java -version
move to the location where the executable JAR was copied
cd ~/[patch to the location of the executable JAR]
and launch the application with the command
java -jar tech.ghp.eval.jar
From the command line of the Apache Felix Gogo shell the 'Eval' service can be used with the commands
eval:eval 8*6
##Integration
The current application tech.ghp.eval is build by Eclipse IDE. This is useful for local usage and development, however the philosophy of open source and collaborative development should be considered. Moreover, when application building is carried out on the personal system, many dependencies accumulate. These dependencies are not suitable for collaborative development and open source. Automatic building from the command line should also be carried out.
###Automatic building
OSGi enRoute includes a full Gradle build. The gradlew script downloads the appropriate gradle version (Java version 1.8 should be available):
$ cd /Users/aqute/git/tech.ghp.eval
$ java -version
java version "1.8.0"
Java(TM) SE Runtime Environment ...
$ ./gradlew
Downloading https://b../biz.aQute.bnd-latest.jar to
/Users/aqute/git/tech.ghp/cnf/cache/biz.aQute.bnd-latest.jar ...
:help
The possible gradle tasks can be obtained with the command
$./gradlew tasks
To automatically builds the application 'tech.ghp.eval' from the command line, the following command is used:
$./gradlew export.tech.ghp.eval
This will create and store the JAR tech.ghp.eval.jar on the path tech.ghp.eval.api/generated/distributions/executable/ tech.ghp.eval.api/generated/
###Sharing
In order share the development, the project can be pushed to the GitHub.

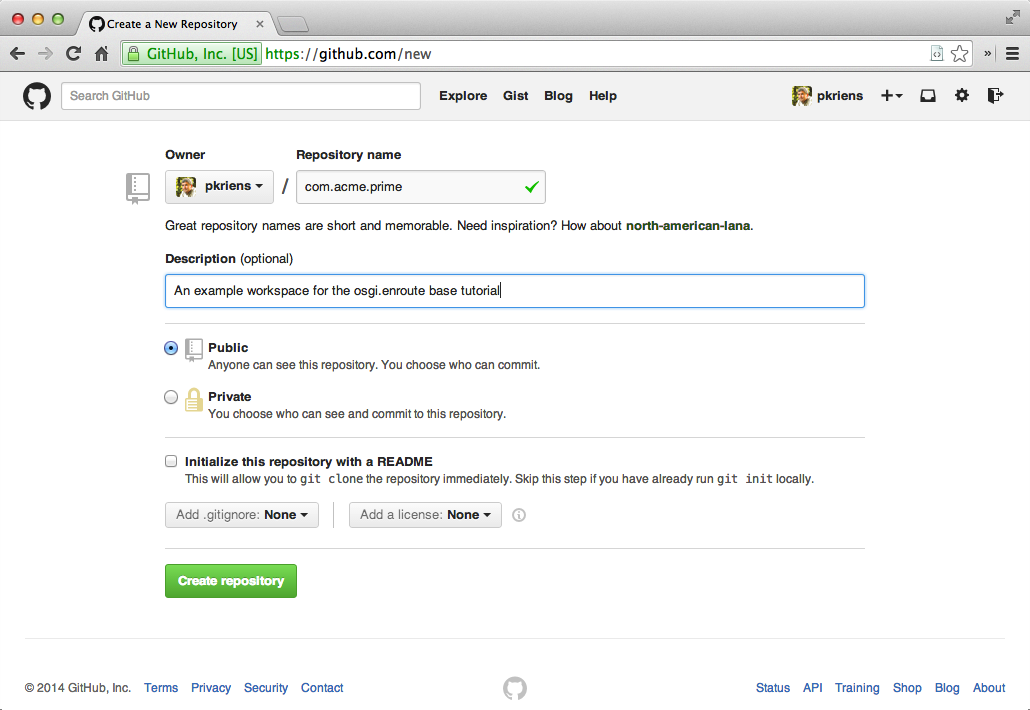

On the GitHub home page GitHub, a new repository has to be created. Name this repository tech.ghp.eval, add a short description 'An example workspace fro the osgi.enroute base tutorial' and set the repository as 'Public' (do not set initialise the 'README' file, do no add 'gitnore' and license).
In order to connect to the local repository !/git/com.acme.prime.eval, the 'SSH URI' [email protected]:GhPTech/tech.ghp.eval.git needs to be copied, then on the command line the following commands should be launched:
$ cd ~/git/tech.ghp.eval
$ git add .
$ git commit -m "first commit"
$ git remote add origin [email protected]:GhPTech/tech.ghp.eval.git
$ git push -u origin master
For further commits and pushes the following commands are used:
$ git add .
$ git commit -m "[commit message]"
$ git push -u origin master
###Continous Integration
The bnd workspace is setup to be built continuously with Travis CI.
From the Travis CI website https://travis-ci.org create an account based on GitHub credentials (or login).
Once logged in, select the Repositories tab. The Sync Now button should be pushed in order to update the latests changes from GitHub. Find the 'com.acme.prime' repository and push the ON button. Every push will now be automatically build the repository 'com.acme.prime' on the Travis IC server.
In order to trigger the build on Travis IC server, a change in the tech.ghp.eval repository is made. The warning from the 'bnd.bnd' file of the provider project is commented as follows:
Bundle-Version: 1.0.0.${tstamp}
Bundle-Description: \
A bundle with a provider. Notice that this provider exports the API package. \
It also provides a JUnit test and it can be run standalone. \
\
#${warning;Please update this Bundle-Description in tech.ghp.eval.provider/bnd.bnd}
The change is saved and pushed to the GitHub server. The Travis IC notices the difference and launches a new automatic build of the repository.
