This project is a simple digital twin of a server rack built with Unity for visualization and ASP.NET Core for backend data. It demonstrates how server status, temperature, and CPU usage can be fetched from a backend and visualized in Unity.
This is a mockup / demo and uses simulated data from the backend.
More Updates to come! Feel free to contribute

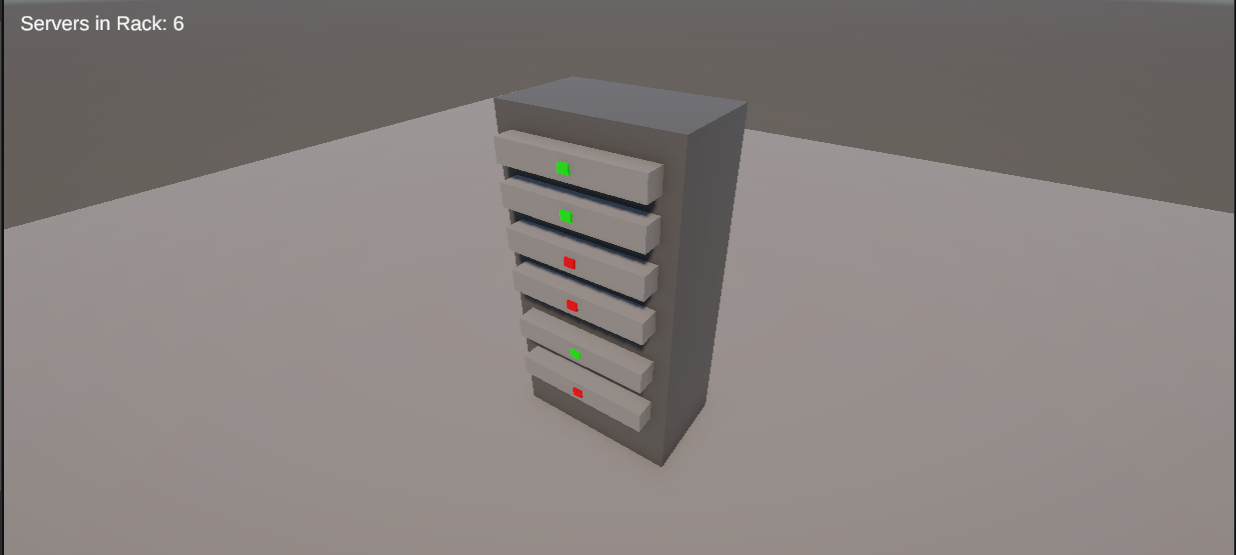

- 3D server rack visualization in unity

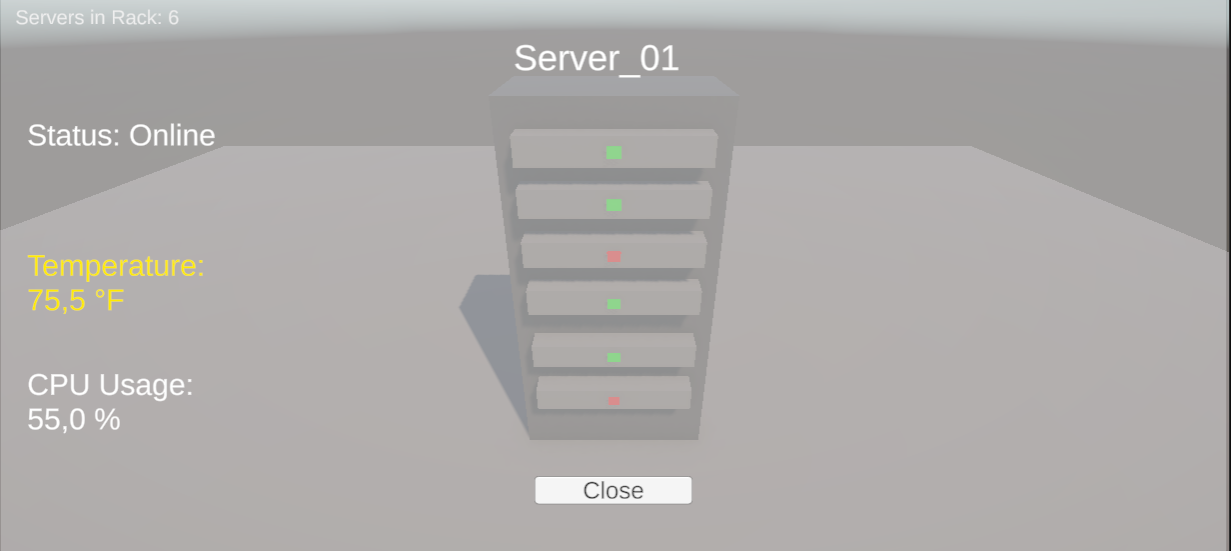

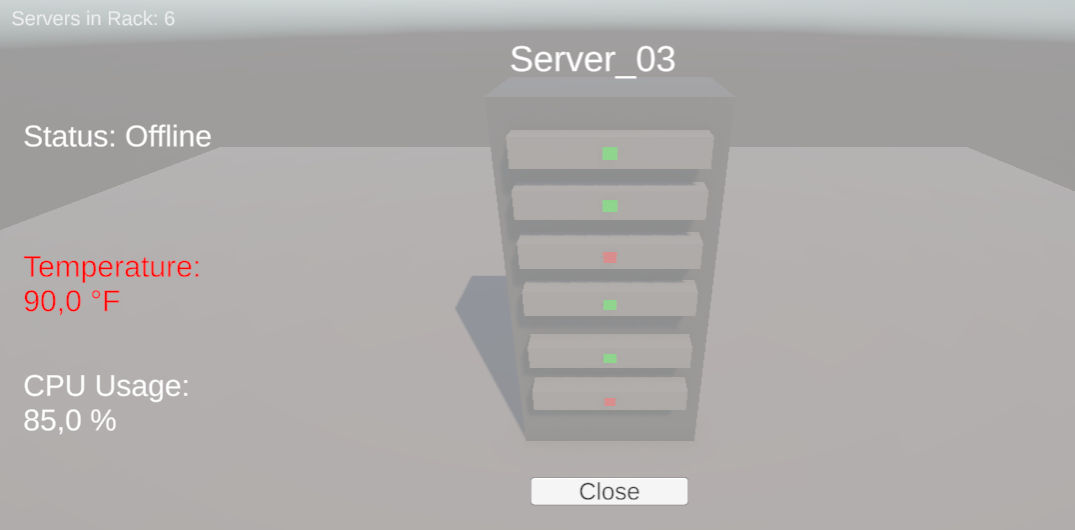

- Server GameObjects change color based on temperature and online status
- Backend provides JSON server data via a REST API
- Supports periodic polling to simulate live updates
- Clean separation between Unity frontend and .NET backend
| Temperature / Status | Color |
|---|---|
| < 60°C | Green |
| 60–80°C | Yellow |
| > 80°C | Red |
DigitalTwin/
├─ UnityClient/ # Unity project
│ ├─ Assets/
│ │ ├─ Scripts/
│ │ └─ ServerState.cs
│ │ └─ ServerDataClient.cs
│ │ └─ ServerRackManager.cs
│ │ └─ Prefabs/
│ │ └─ Server.prefab
│ └─ UnityClient.sln
│
├─ Backend/ # ASP.NET Core backend
│ ├─ ServerTwin.Api/
│ │ ├─ Program.cs
│ │ └─ ServerTwin.Api.csproj
│ └─ Backend.sln
└─ README.md
- Unity 6000.2.13
- .NET 8 SDK (or later)
- Visual Studio or VS Code (optional)
