Cover: Customizing Alignment with Reakit Composite

[ItsJonQ]

This PR attempts to implement the Composite component from Reakit into the new AlignmentMatrixControl.

For the initial integration attempt, it seemed to work as expected in Storybook (yay).

However, there appears to be issues within Gutenberg.

(Not) Playing Nicely with Toolbar

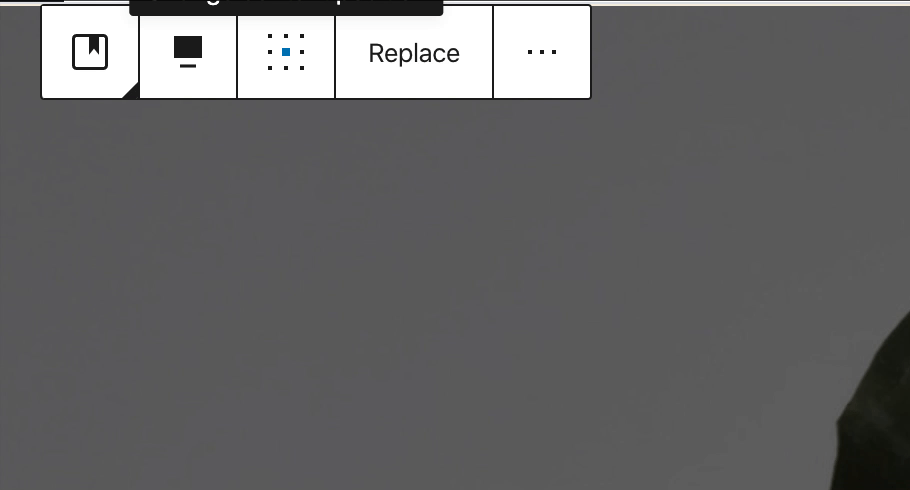

When expanding the Position dropdown in the Toolbar, the AlignmentMatrixControl appears to have issues rendering (see below):

It flashes and closes immediately. I'm not too sure why.

Seeing unstable_virtual: false seems to allow it to render okay. Although, the interactions and keyboard navigation seems to be off.

CC'ing @diegohaz for expertise 😊

Thoughts/feedback welcome! We can change anything in this branch / draft PR

[github-actions]

Size Change: +361 B (0%)

Total Size: 886 kB

Filename	Size	Change
build/a11y/index.js	1.02 kB	+1 B
build/annotations/index.js	3.45 kB	-1 B
build/api-fetch/index.js	3.8 kB	+1 B
build/autop/index.js	2.58 kB	-2 B (0%)
build/block-directory/index.js	6.02 kB	-5 B (0%)
build/block-editor/index.js	102 kB	+107 B (0%)
build/block-library/index.js	111 kB	-1 B
build/components/index.js	197 kB	+297 B (0%)
build/core-data/index.js	10.7 kB	+2 B (0%)
build/data-controls/index.js	1.04 kB	+2 B (0%)
build/data/index.js	8.24 kB	+5 B (0%)
build/date/index.js	5.36 kB	-5 B (0%)
build/dom/index.js	3.05 kB	-1 B
build/edit-post/index.js	92.2 kB	-21 B (0%)
build/edit-site/index.js	9.1 kB	-7 B (0%)
build/edit-widgets/index.js	4.43 kB	+2 B (0%)
build/editor/index.js	42.8 kB	-10 B (0%)
build/element/index.js	4.44 kB	-1 B
build/format-library/index.js	6.95 kB	-4 B (0%)
build/i18n/index.js	3.57 kB	-1 B
build/is-shallow-equal/index.js	713 B	+3 B (0%)
build/notices/index.js	1.57 kB	-1 B
build/nux/index.js	3 kB	-2 B (0%)
build/plugins/index.js	2.54 kB	+2 B (0%)
build/redux-routine/index.js	2.84 kB	-1 B
build/server-side-render/index.js	2.54 kB	+1 B
build/shortcode/index.js	1.7 kB	+1 B
build/viewport/index.js	1.61 kB	+1 B
build/warning/index.js	1.14 kB	-1 B

ℹ️ View Unchanged

Filename	Size	Change
build/blob/index.js	620 B	0 B
build/block-directory/style-rtl.css	760 B	0 B
build/block-directory/style.css	760 B	0 B
build/block-editor/style-rtl.css	11.2 kB	0 B
build/block-editor/style.css	11.2 kB	0 B
build/block-library/editor-rtl.css	7.22 kB	0 B
build/block-library/editor.css	7.22 kB	0 B
build/block-library/style-rtl.css	7.64 kB	0 B
build/block-library/style.css	7.65 kB	0 B
build/block-library/theme-rtl.css	669 B	0 B
build/block-library/theme.css	671 B	0 B
build/block-serialization-default-parser/index.js	1.65 kB	0 B
build/block-serialization-spec-parser/index.js	3.1 kB	0 B
build/blocks/index.js	57.5 kB	0 B
build/components/style-rtl.css	16.1 kB	0 B
build/components/style.css	16 kB	0 B
build/compose/index.js	6.21 kB	0 B
build/deprecated/index.js	772 B	0 B
build/dom-ready/index.js	569 B	0 B
build/edit-navigation/index.js	2.48 kB	0 B
build/edit-navigation/style-rtl.css	239 B	0 B
build/edit-navigation/style.css	241 B	0 B
build/edit-post/style-rtl.css	12 kB	0 B
build/edit-post/style.css	12 kB	0 B
build/edit-site/style-rtl.css	4.62 kB	0 B
build/edit-site/style.css	4.62 kB	0 B
build/edit-widgets/style-rtl.css	3.74 kB	0 B
build/edit-widgets/style.css	3.74 kB	0 B
build/editor/editor-styles-rtl.css	423 B	0 B
build/editor/editor-styles.css	426 B	0 B
build/editor/style-rtl.css	3.49 kB	0 B
build/editor/style.css	3.49 kB	0 B
build/escape-html/index.js	733 B	0 B
build/format-library/style-rtl.css	502 B	0 B
build/format-library/style.css	502 B	0 B
build/hooks/index.js	1.93 kB	0 B
build/html-entities/index.js	622 B	0 B
build/keyboard-shortcuts/index.js	2.3 kB	0 B
build/keycodes/index.js	1.7 kB	0 B
build/list-reusable-blocks/index.js	2.99 kB	0 B
build/list-reusable-blocks/style-rtl.css	226 B	0 B
build/list-reusable-blocks/style.css	226 B	0 B
build/media-utils/index.js	4.84 kB	0 B
build/nux/style-rtl.css	616 B	0 B
build/nux/style.css	613 B	0 B
build/primitives/index.js	1.5 kB	0 B
build/priority-queue/index.js	780 B	0 B
build/rich-text/index.js	14.5 kB	0 B
build/token-list/index.js	1.28 kB	0 B
build/url/index.js	4.01 kB	0 B
build/wordcount/index.js	1.17 kB	0 B

_{compressed-size-action}

[diegohaz]

I cleaned up the code a little bit and fixed some issues I found, including the one you mentioned about it closing right away.

Styles need some work and probably we will want to close the popover when the user clicks on an option?

I'm not sure what was causing the problem, but I think it has something to do with this queueBlurCheck on the with-focus-outside high order component:

gutenberg/packages/components/src/higher-order/with-focus-outside/index.js

Lines 67 to 90 in 963998e

	queueBlurCheck( event ) {
	// React does not allow using an event reference asynchronously
	// due to recycling behavior, except when explicitly persisted.
	event.persist();
	// Skip blur check if clicking button. See `normalizeButtonFocus`.
	if ( this.preventBlurCheck ) {
	return;
	}
	this.blurCheckTimeout = setTimeout( () => {
	// If document is not focused then focus should remain
	// inside the wrapped component and therefore we cancel
	// this blur event thereby leaving focus in place.
	// https://developer.mozilla.org/en-US/docs/Web/API/Document/hasFocus.
	if ( ! document.hasFocus() ) {
	event.preventDefault();
	return;
	}
	if ( 'function' === typeof this.node.handleFocusOutside ) {
	this.node.handleFocusOutside( event );
	}
	}, 0 );
	}

When unstable_virtual is activated, items receive focus and return it to the composite container in the same tick so, visually, it looks like the container never lost focus. This is so we can provide the same API for both aria-activedescendant and roving tabindex methods. That is, you can do <CompositeItem onFocus={...} /> regardless of the approach you're using.

This sequence of blurring the container, focusing the item, blurring the item and focusing the container might be conflicting with the queueBlurCheck method or some other thing in that module.

One option is to stopPropagation on the container's onBlur event when event.relatedTarget is some of the composite items:

<Composite
	onBlur={ ( event ) => {
		if (
			composite.items.some(
				( item ) => item.ref.current === event.relatedTarget
			)
		) {
			event.stopPropagation();
		}
	} }
/>

But, it's safer to just use roving tabindex instead as this is a valid approach for grids.

[ItsJonQ]

@diegohaz Wowow! Thank you so much! Your explanation makes sense. Beautiful refactors :D.
I can fix up the styles, no worries!

Could not have done this without you 🤘

[ItsJonQ]

@diegohaz Haiii!! I made some refactors and pushed it up!

One thing I'm noticing (that I'm not sure how to resolve, yet). I believe it touches upon the focus/blur logic you pointed out.

This has to do with keyboard navigation when AlignmentMatrixControl renders within the Toolbar.

---

If we use <Dropdown /> (like what you suggested)...

Keyboard navigation (up, down, left, right), works as expected.

But... Toolbar navigation is funky. When the AlignmentMatrix icon is focused, pressing DOWN on the keyboard doesn't open the dropdown. Shift and ESC keypresses are also finicky.

---

If we use <Toolbar /> (like what I had previously)...

Keyboard navigation (up, down, left, right), does not work as expected. The movements are weird...

However, Toolbar navigation works.

---

🤔

[diegohaz]

Collapsed Toolbar/ToolbarGroup uses DropdownMenu, which uses NavigableMenu, which implements its own keyboard navigation expecting a vertical one-dimensional list. So I guess using it is not an option?

I don't know if there's a Dropdown component that reproduces the same behaviors as DropdownMenu without NavigableMenu. I just took the block switcher dropdown as a reference. It implements the arrow down key here:

gutenberg/packages/block-editor/src/components/block-switcher/index.js

Lines 106 to 112 in 4b8d1f8

	const openOnArrowDown = ( event ) => {
	if ( ! isOpen && event.keyCode === DOWN ) {
	event.preventDefault();
	event.stopPropagation();
	onToggle();
	}
	};

[ItsJonQ]

@diegohaz Thank you so much! That clue helped me a lot.

I was able to fix it up. I had to swap ToolbarButton with a regular Button to make it work.
Going through this exercise has helped me understand how... tricky... it is to work with all of these various parts (Toolbar, Dropdown, DropdownMenu, etc...).

Let's work on making these components seamless and better, together! 💪

[diegohaz]

Yep! I’ll eventually need to update it to ToolbarButton later as part of the toolbar work I’m doing. 😅

[ItsJonQ]

@diegohaz You're the best <3

[gziolo]

Nice team work 😍🔥
