Compass

In-Silico Modeling of Metabolic Heterogeneity using Single-Cell Transcriptomes

Cellular metabolism, a key regulator of immune responses, is difficult to study with current technologies in individual cells. We therefore developed Compass, an in silico approach to infer metabolic status of cells based on transcriptome data, which is readily available even in single cell resolutions.

This page provides an installation guide and a workthrough of a standard analysis. For a detailed description of the algorithm, refer to the biorxiv preprint.

Install

Installing CPLEX (required for Compass)

Compass depends on IBM CPLEX to run optimization procedures. The full edition is available for free for academic use.

See our instructions here for an in depth tutorial on installing CPLEX

_{Note: Make sure to get the full edition (free for academic use) and not the Community Edition}

Installing Compass

The best way is to install directly from this Github repository using the following command:

pip install git+https://github.com/yoseflab/Compass.git

Now to test if everything is installed, simply run:

compass -h

You should see the help text print out if installation was succesful :)

Running Compass

Broadly speaking, Compass takes in a gene expression matrix scaled by transcripts per million, and outputs a penalty reaction matrix, whereby higher scores correspond to a reaction being less likely.

Running Compass (Simple)

Input file expression.txt should be a tab-delimited text file containing gene expression estimates (TPM) with one row per gene, one column per sample. Must contain both row and column labels, corresponding to genes and sample IDs/names respectively.

compass --data expression.txt --num-processes 10

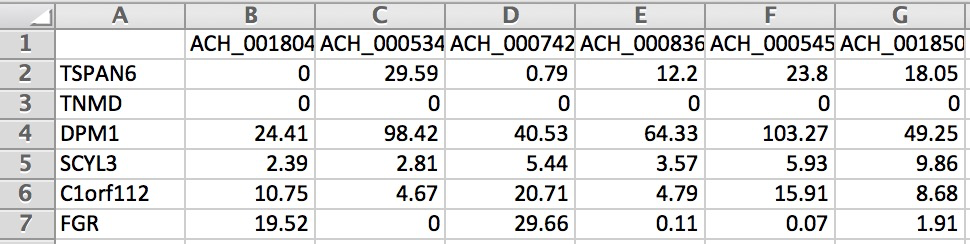

Below is an example of the formatting for gene expression (We only show a small portion of the matrix):

_{Note: For every individual sample, Compass takes roughly 8 to 24 hours to calculate the reaction penalties (varying by machine). This can be expedited by running more than one process at once. In addition, Compass saves the results of all samples that it has already processed. Therefore, Compass can also be stopped and restarted after it is done processing a subset of samples.}

Running Compass (Advanced settings)

Compass also allows users to customize a variaty of settings seen below:

usage: compass [-h] --data FILE [--model MODEL] [--species SPECIES]
               [--media MEDIA] [--output-dir DIR] [--temp-dir DIR]
               [--torque-queue QUEUE] [--num-processes N] [--lambda F]
               [--num-threads N] [--and-function FXN] [--num-neighbors N]
               [--symmetric-kernel] [--input-weights FILE]
               [--penalty-diffusion MODE] [--no-reactions] [--no-metabolites]

See our instructions here for an in depth tutorial on using Compass's advanced settings

Postprocessing

Once Compass has finished running, it is important to apply postprocessing to the data in order to convert reaction penalties (where high values correspond to low likelihood reactions) to reaction scores (where high values correspond to likely reactions).

Our compassR package appropriately postprocesses the data and provides an easy, expressive framework for conducting subsequent analyses.

Outputs

When Compass has completed, the outputs for all samples are stored in a tab delimited file reactions.tsv in the specified output directory (. directory when running Compass by default).

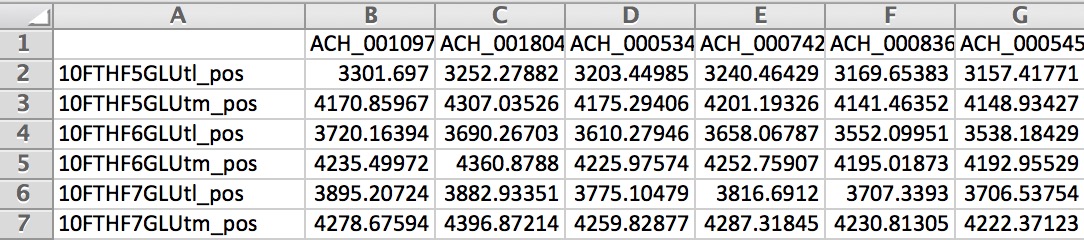

Below is an example of the output matrix:

_{Note: While compass is running, it will store partial results for each sample in the _tmp directory/}
