[SPARK-36039][K8S] Fix executor pod hadoop conf mount

[cutiechi]

What changes were proposed in this pull request?

Fix executor pod hadoop conf mount.

Why are the changes needed?

Arg --conf spark.kubernetes.hadoop.configMapName for executor pod not working.

Does this PR introduce any user-facing change?

No.

How was this patch tested?

UT.

[AmplabJenkins]

Can one of the admins verify this patch?

[dongjoon-hyun]

Hi, @cutiechi . Thank you for making a PR. Apache Spark community is using the contributor's GitHub Action resource. Please allow GitHub Action on your fork and make it up-to-date. The following failure is happening on your fork.

[dongjoon-hyun]

Also, please add a test case.

cc @ScrapCodes

[cutiechi]

Hi, @cutiechi . Thank you for making a PR. Apache Spark community is using the contributor's GitHub Action resource. Please allow GitHub Action on your fork and make it up-to-date. The following failure is happening on your fork.

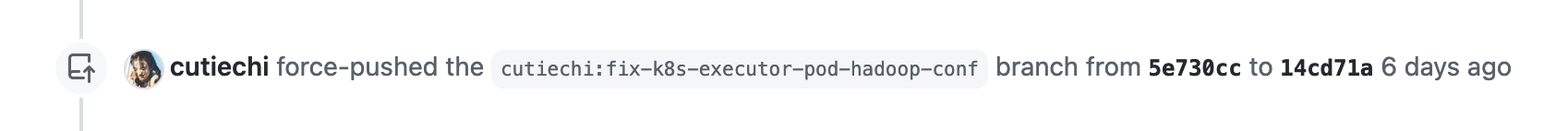

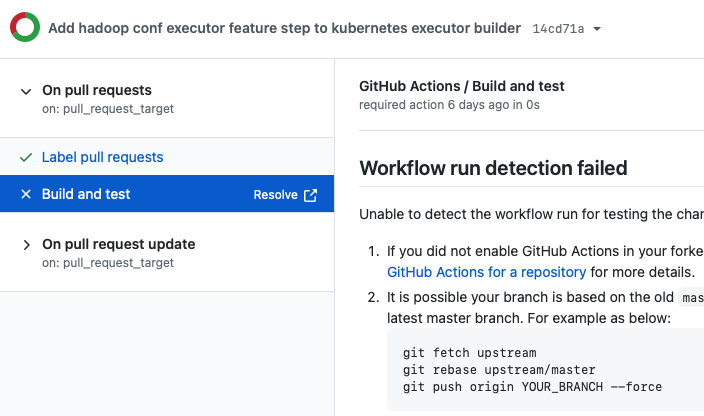

Hello, I have already done this, but I don’t know why I can’t pass the detection of this action

[cutiechi]

Also, please add a test case.

cc @ScrapCodes

Ok

[ScrapCodes]

Hi @cutiechi,

Thank you for the PR!

There is a way to mount arbitrary hadoop configuration on executors, i.e. by spark conf propagate implemented in [SPARK-30985]. Place all hadoop configuration files in the SPARK_HOME/conf dir and it will be loaded on the executors and driver as well. This happens internally by creating a configMap, one for driver and executor each. At the moment these configMaps are not fully user configurable.

IMO, If we make these configMap user configurable, then that solution will apply to all the frameworks not specific to hadoop. [SPARK-32223]

In the mean time, we can have this. But we would need a k8s integration test.

[ScrapCodes]

Or may be the integration test is not absolutely necessary, just the Unit test is enough. e.g. this test

[cutiechi]

@dongjoon-hyun @ScrapCodes

Please help me review again, thx

[tbcdns]

Thanks for the fix, I am also facing this issue.

FYI, I think the same issue is present for the kerberos config. When specifying the prop spark.kubernetes.kerberos.krb5.configMapName, it is provisioned only to the driver but not the executors...

[cutiechi]

@dongjoon-hyun @ScrapCodes

Please help me review again, thx

[ScrapCodes]

While testing your PR,

I am getting the same error again.

export HADOOP_CONF_DIR=`pwd`/conf


./bin/spark-submit \
    --master <IP>:<port> \
    --deploy-mode cluster \
    --name spark-pi \
    --class org.apache.spark.examples.SparkPi \
    --conf spark.executor.instances=2 \
    --conf spark.kubernetes.authenticate.driver.serviceAccountName=spark \
    --conf spark.kubernetes.container.image=scrapcodes/spark:3.3.0-SNAPSHOT \
    local:///opt/spark/examples/jars/spark-examples_2.12-3.3.0-SNAPSHOT.jar

Executors are crash looping with:

  Warning  FailedMount  23s (x7 over 55s)  kubelet, 10.240.128.22  MountVolume.SetUp failed for volume "hadoop-properties" : configmap "spark-pi-4c4e757aeca6de9b-hadoop-config" not found

This happens because, configmap does not get created in the executor step. And the current code is designed that way. It will work, if we use a user provided configmap.

[cutiechi]

I recompiled the code of the current branch and re-tested according to the following command:

@dongjoon-hyun @ScrapCodes

export HADOOP_CONF_DIR=`pwd`/conf

./bin/spark-submit  \
  --master k8s://https://172.16.102.10:8443 \
  --deploy-mode cluster \
  --name java-queue-stream \
  --class org.apache.spark.examples.streaming.JavaQueueStream \
  --conf spark.executor.instances=3  \
  --conf spark.kubernetes.container.image=spark:testing \
  --conf spark.kubernetes.authenticate.driver.serviceAccountName=spark \
  local:///opt/spark/examples/jars/spark-examples_2.12-3.3.0-SNAPSHOT.jar

But the result is different from yours, all pods are running normally

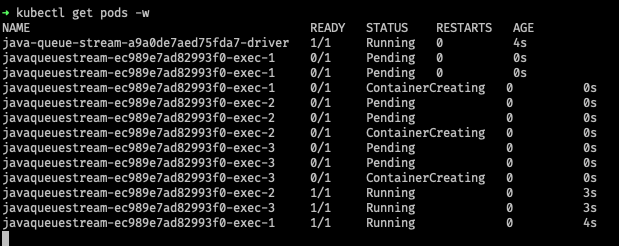

Pods:

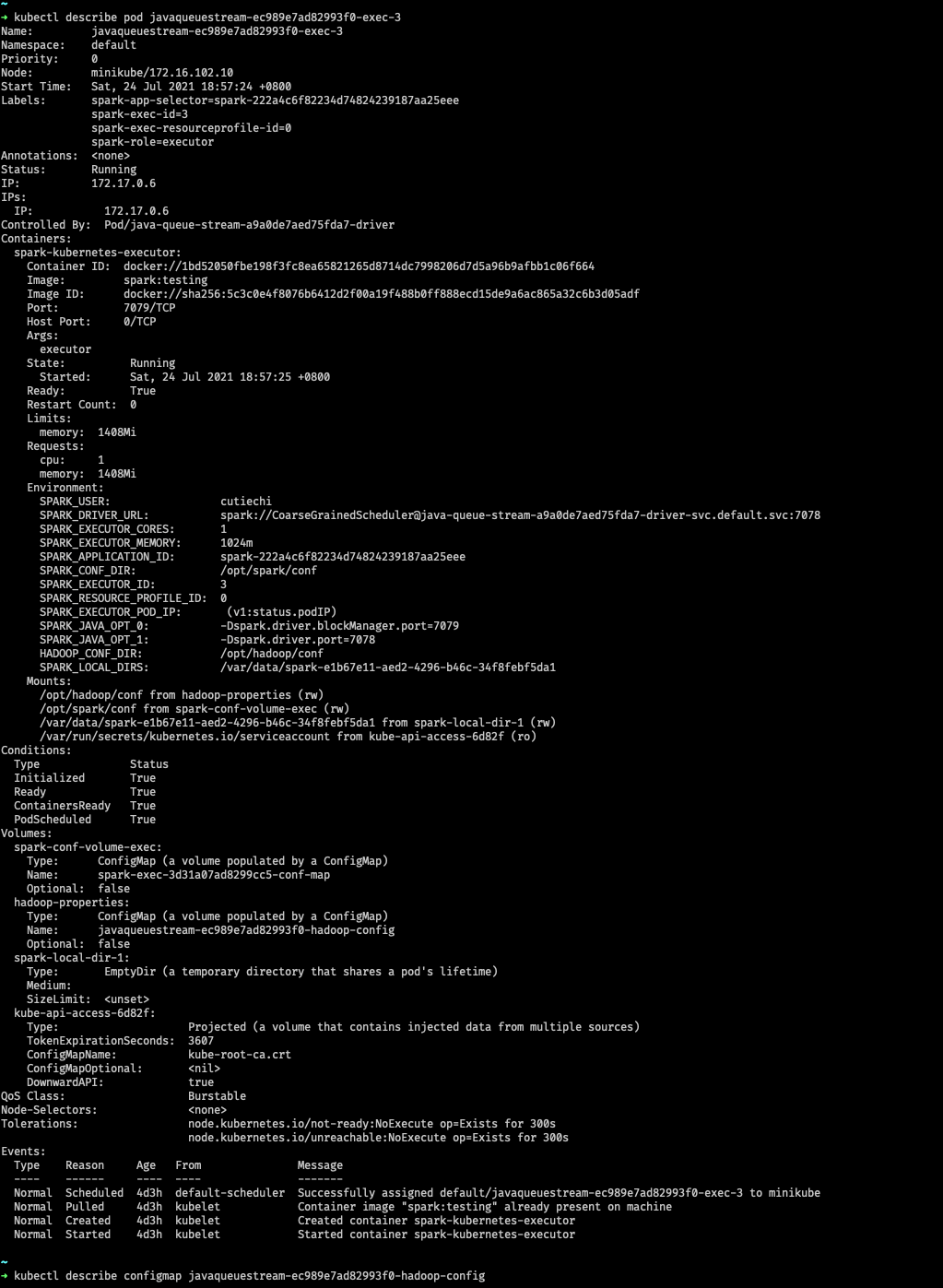

One of the executor pod:

Hadoop properties ConfigMap of this Pod:

Did you pull the latest code and recompile and test it? Please help me review again, thx

[cutiechi]

@dongjoon-hyun @ScrapCodes

This video was recorded during my test:

CleanShot.2021-07-28.at.22.12.29.mp4

[ScrapCodes]

Interesting!

Can you run with spark.logConf=true ? and show the output?

EDIT: for this to work.

1. cp conf/log4j.properties.template conf/log4j.properties
2. configure DEBUG logging in conf/log4j.properties

./bin/spark-submit  \
  --master k8s://https://172.16.102.10:8443 \
  --deploy-mode cluster \
  --name java-queue-stream \
  --class org.apache.spark.examples.streaming.JavaQueueStream \
  --conf spark.executor.instances=3  \
  --conf spark.logConf=true \
  --conf spark.kubernetes.container.image=spark:testing \
  --conf spark.kubernetes.authenticate.driver.serviceAccountName=spark \
  local:///opt/spark/examples/jars/spark-examples_2.12-3.3.0-SNAPSHOT.jar

Another question: What happens when you run in deploy mode as client?
i.e. --deploy-mode client

[cutiechi]

Interesting!

Can you run with spark.logConf=true ? and show the output?

Ok

[cutiechi]

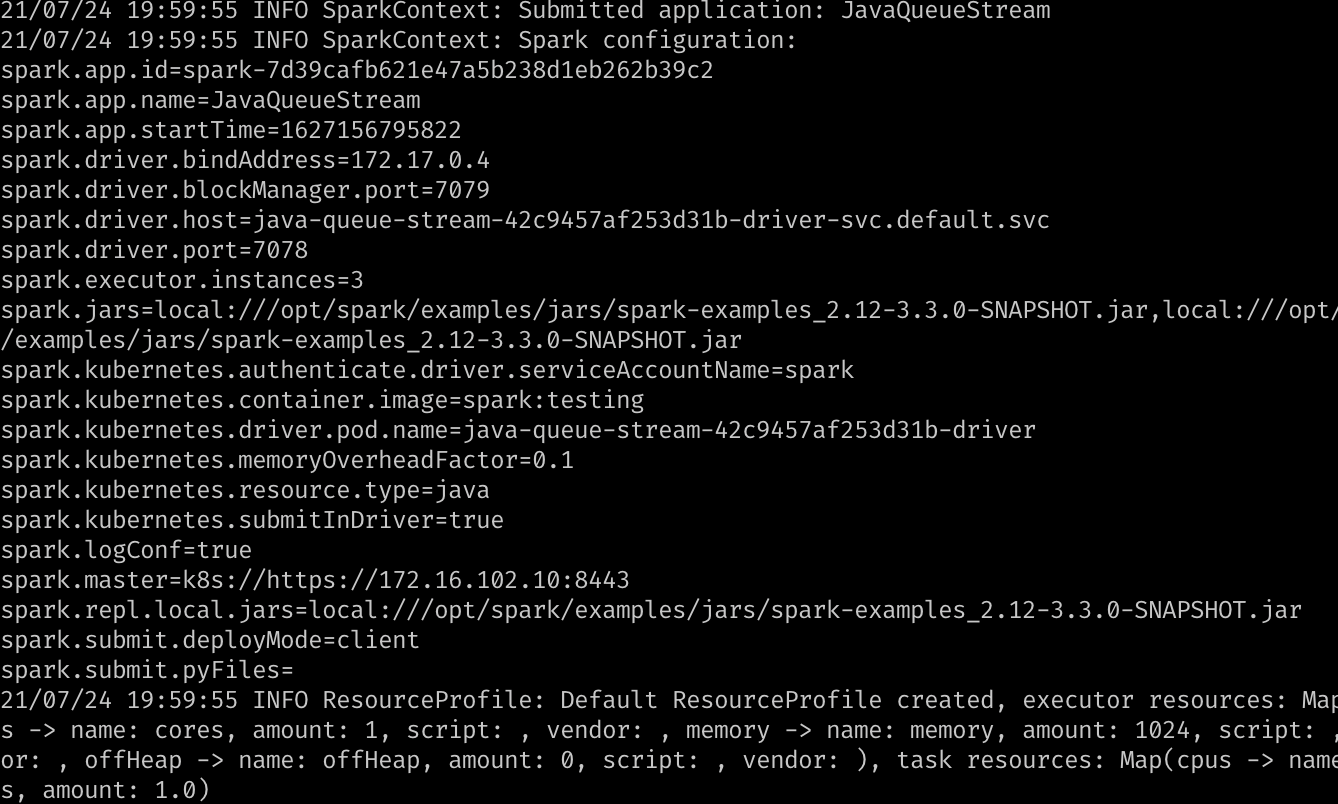

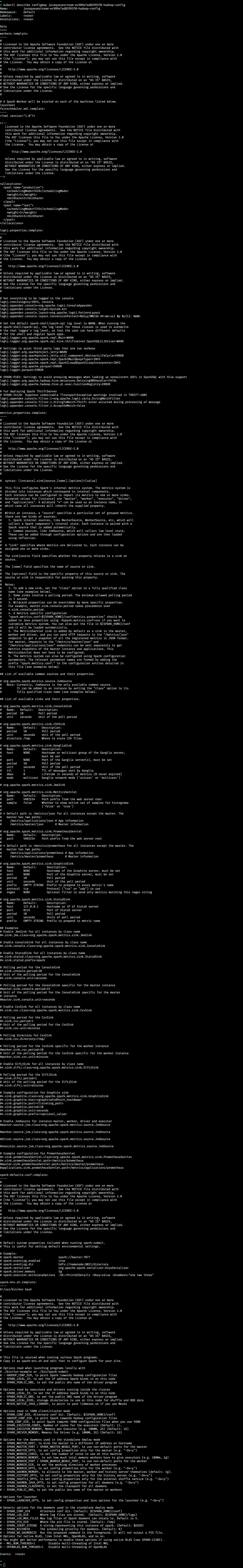

@ScrapCodes Log in driver pod, there is no such log in executor pod :

[cutiechi]

@ScrapCodes Client Mode:

./bin/spark-submit  \
  --master k8s://https://172.16.102.10:8443 \
  --deploy-mode client \
  --name java-queue-stream \
  --class org.apache.spark.examples.streaming.JavaQueueStream \
  --conf spark.driver.ip=172.16.102.1 \
  --conf spark.executor.instances=3  \
  --conf spark.logConf=true \
  --conf spark.kubernetes.container.image=spark:testing \
  --conf spark.kubernetes.authenticate.driver.serviceAccountName=spark \
  examples/jars/spark-examples_2.12-3.3.0-SNAPSHOT.jar

CleanShot.2021-07-29.at.21.05.56.mp4

[cutiechi]

@dongjoon-hyun @ScrapCodes

Please help me review again, thx

[cutiechi]

@ScrapCodes @dongjoon-hyun
Please help me review again, thx

[holdenk]

Ping @ScrapCodes / @dongjoon-hyun , I can also take a look if y'all are busy.

[ScrapCodes]

Hi @holdenk , with resources(i.e. a k8s cluster on IBM Cloud) I have, I was unable to get this patch to work. So, I could not make progress. Feel free to take a look ! (your and @dongjoon-hyun's approval will be final)

[cutiechi]

I recompiled and tested it again, I'm sure there is no problem @ScrapCodes @holdenk @dongjoon-hyun

[cutiechi]

@ScrapCodes Did you rebuild the image?

[cutiechi]

@ScrapCodes ping

[github-actions]

We're closing this PR because it hasn't been updated in a while. This isn't a judgement on the merit of the PR in any way. It's just a way of keeping the PR queue manageable.
If you'd like to revive this PR, please reopen it and ask a committer to remove the Stale tag!
