[engagement] Create Engagement plugin PoC #123339

clintandrewhall · 2022-01-19T07:23:40Z

Replaced by #123772

Summary

This is a proof-of-concept for a new plugin I'm calling "Engagement", which enables the integration of Drift on certain pages in Kibana. It is fully mocked in Storybook, as well.

Rather than add the logic to every page, this approach opts for plugins to add the engagement plugin as a dependency, wrap their app in the ServicesContext provided by the start contract, and explicitly render the chat component. I opted for this approach so we can be surgical in how we add this component, (for now).

Why a new plugin?

To have a home for other engagement projects, (product tours?, etc)
To make the implementation a bit more abstract.
cloud is an xpack plugin, which limits its code use in OSS plugins.

To Test

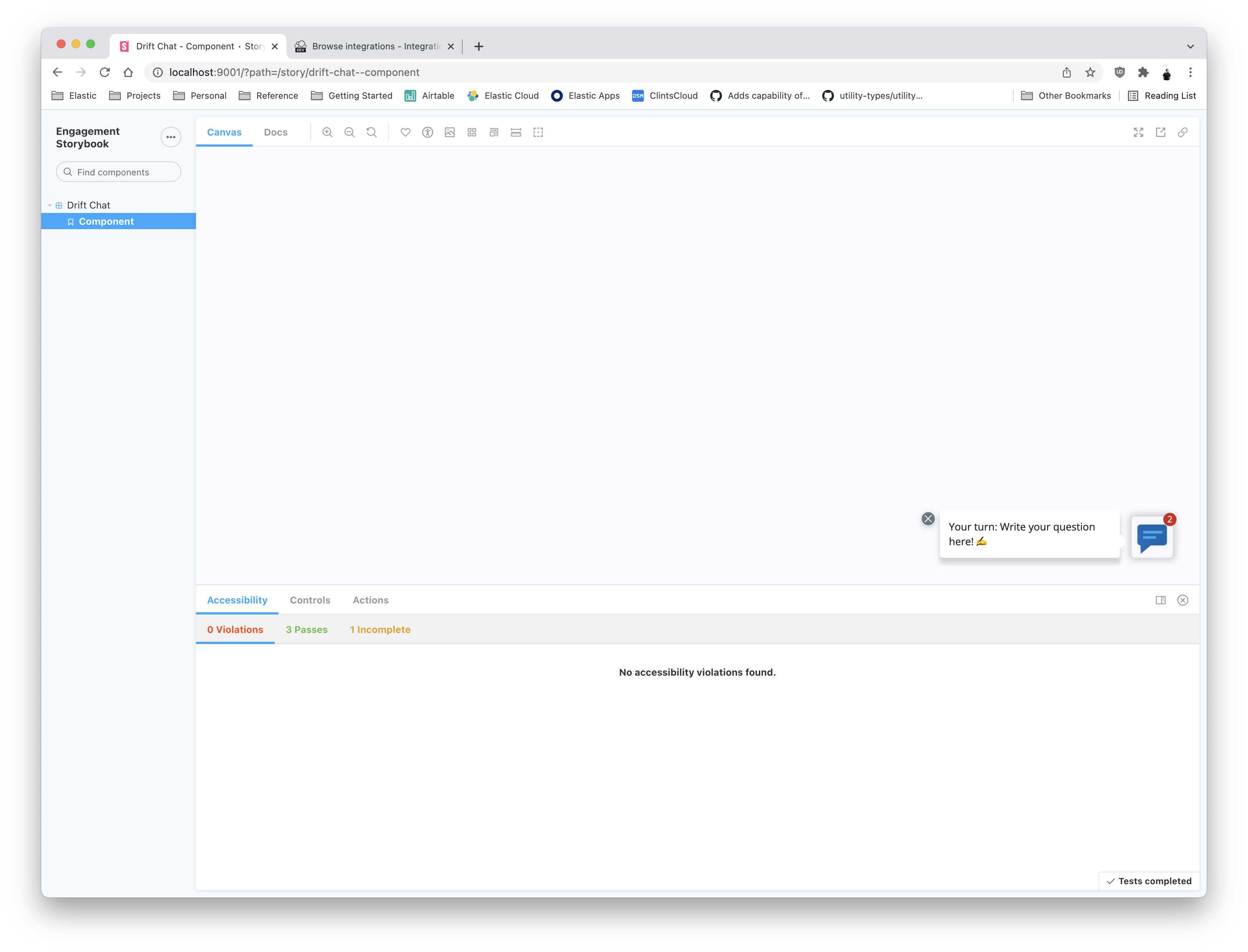

Storybook

Run yarn storybook engagement from /kibana.

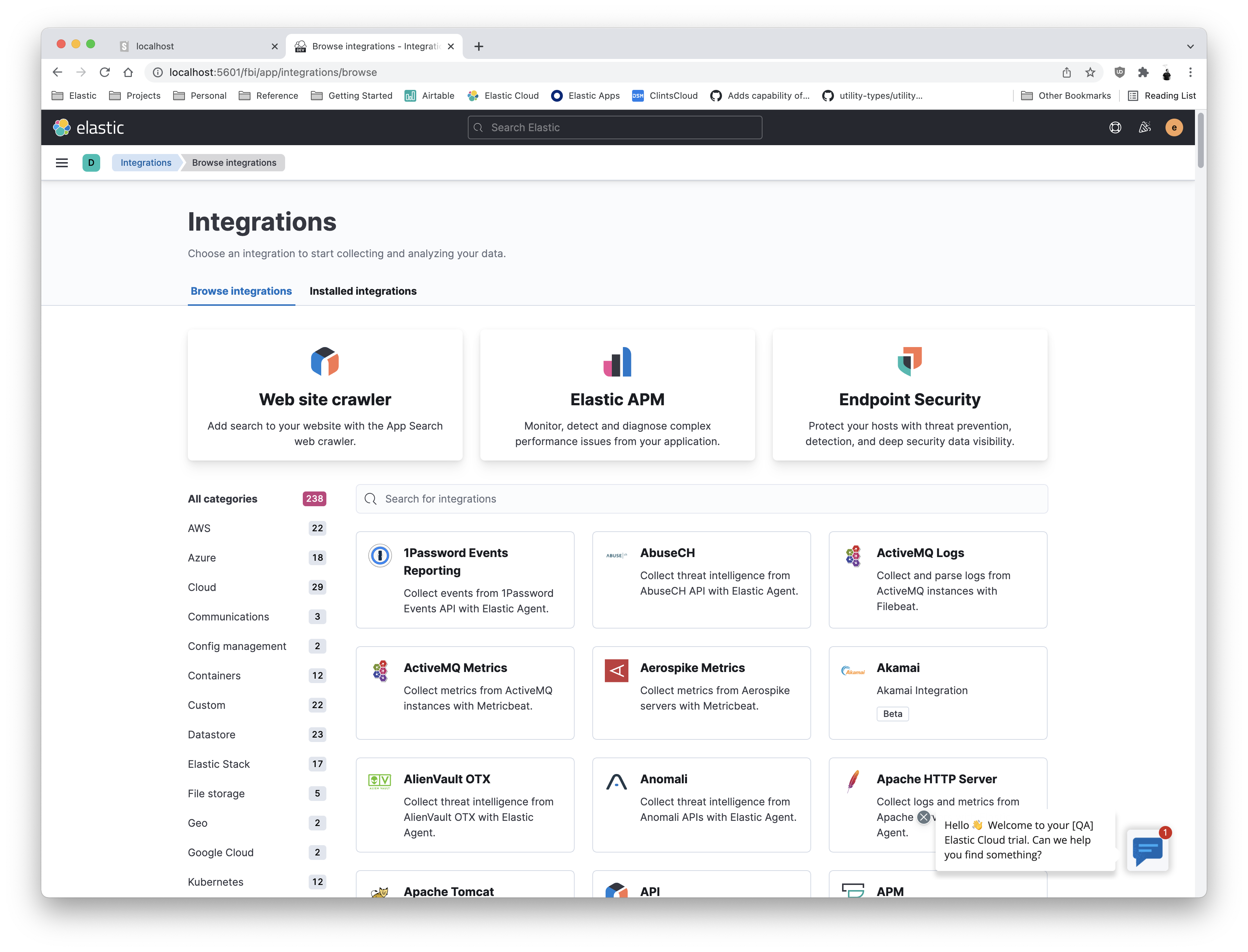

In Kibana

Add the following to kibana.dev.yml:

engagement.drift.enabled: true
engagement.drift.chatURL: "https://elasticcloud-production-chat-us-east-1.s3.amazonaws.com/drift-iframe.html"
engagement.drift.pocID: "53877975"
engagement.drift.pocEmail: "[email protected]"
engagement.drift.pocJWT: "eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiI1Mzg3Nzk3NSIsImV4cCI6MTY0MjUxNDc0Mn0.CcAZbD8R865UmoHGi27wKn0aH1bzkZXhX449yyDH2Vk"

Known Issues

For some reason, I can't get the config to be read in public/plugin.tsx. I confirmed it works on the server, though.
@SergeyPoluektov The portions of the config starting with poc need to be sourced appropriately, rather than set in config.
@SergeyPoluektov The chat iframe is receiving a message to size to 100px wide after clicking on the chat bubble.

Next steps

Review appropriateness of approach with stakeholders.
Write extensive tests and documentation.
Identify pages where the chat icon should be placed (@alexfrancoeur)

pgayvallet

Just passing by. The approach to have each plugin to manually opt-in by importing and using the component sounds good to me.

src/plugins/engagement/server/config.ts

src/plugins/engagement/server/plugin.ts

pgayvallet · 2022-01-21T07:13:21Z

x-pack/plugins/fleet/public/applications/integrations/app.tsx

+                            <startServices.engagement.ContextProvider>
+                              <Router history={history}>
+                                <AgentPolicyContextProvider>
+                                  <PackageInstallProvider
+                                    notifications={startServices.notifications}
+                                    theme$={theme$}
+                                  >
+                                    <IntegrationsHeader {...{ setHeaderActionMenu, theme$ }} />
+                                    {children}
+                                    <EngagementChat />


Is this engagement.ContextProvider only used for the EngagementChat component? If so, did you though about exposing a context-wrapper component via the engagement plugin's contract instead of having to use both the plugin's contract to access the context provider and direct imports to import the chat component?

something like

<Router history={history}> <....> <startServices.engagement.Chat /> </...> </Router>

this is a pattern commonly used in other parts of Kibana when in need of exposing preconfigured/context-injected components to other plugins

The idea was for this plugin to have more than one component, so the initial API matters.

That's an interesting approach! I'll have to think about it a bit more. My concerns with it at the moment are:

getting startServices down the tree in cases where a component is more granular, (e.g. a configured drop down control.

storing all startServices in context in the off chance you use a single component, whereas the ContextProvider simply provides services for components. I'm not sure if the difference is meaningful or not.

mocking the startServices in Storybook and Jest tests has been notoriously difficult. I'm loathe to introduce a complex startServices construct when you're only relying on ContextProvider.

I need to look into this more.

src/plugins/engagement/common/index.ts

src/plugins/engagement/public/components/iframe_chat/iframe_chat.tsx

pgayvallet · 2022-01-21T07:20:51Z

src/plugins/engagement/public/components/iframe_chat/iframe_chat.tsx

+const getContext = () => {
+  const { location, navigator, innerHeight, innerWidth } = window;
+  const { hash, host, hostname, href, origin, pathname, port, protocol, search } = location;
+  const { language, userAgent } = navigator;
+  const { title, referrer } = document;


What's the purpose of this function compared to using window and document directly? To have more control over what's we're effectively sending and avoid potentially leaking things when calling chatIframe.contentWindow.postMessage?

Just understanding what we have to send to the frame. This is a refactored bit of another draft PR from the Journey team, and, since I don't have insight into the messaging API, splitting it out like this seemed like a good way to keep track of precisely what we need to send, (and for testing purposes).

src/plugins/engagement/public/components/iframe_chat/index.ts

src/plugins/engagement/public/plugin.tsx

SergeyPoluektov · 2022-01-24T13:17:45Z

The chat iframe is receiving a message to size to 100px wide after clicking on the chat bubble.

This issue seemed solved, although I didn't get last update from Drift support. But the chat window is sizing correctly now

kibana-ci · 2022-01-25T16:51:42Z

💔 Build Failed

Failed CI Steps

Metrics [docs]

Module Count

Fewer modules leads to a faster build time

id	before	after	diff
`engagement`	-	9	+9

Async chunks

Total size of all lazy-loaded chunks that will be downloaded as the user navigates the app

id	before	after	diff
`engagement`	-	1.6KB	+1.6KB
`fleet`	644.5KB	644.6KB	+110.0B
total			+1.7KB

Page load bundle

Size of the bundles that are downloaded on every page load. Target size is below 100kb

id	before	after	diff
`engagement`	-	3.8KB	+3.8KB
`fleet`	112.8KB	113.0KB	+140.0B
`sharedUX`	3.7KB	3.8KB	+88.0B
total			+4.0KB

Unknown metric groups

async chunk count

id	before	after	diff
`engagement`	-	1	+1

History

💔 Build #19267 failed fbbe312
💔 Build #19233 failed c11c00f6461292258dd8074046ee17620ecb9845
💔 Build #18620 failed 9bdf552
💔 Build #18532 failed 1b475df

To update your PR or re-run it, just comment with:
@elasticmachine merge upstream

SergeyPoluektov · 2022-01-25T16:53:53Z

src/plugins/engagement/public/plugin.tsx

+      id: 'user-id',
+      email: '[email protected]',
+    }
+  }


We need to find a way to obtain a Kibana or Cloud user data here. Particularly we need to get user ID (might be Kibana user's username) and user email (this should be the same as in Cloud for Cloud users)
@pgayvallet maybe you know how to do this?

clintandrewhall · 2022-01-25T22:50:23Z

Closing in favor of #123772

[engagement] Create engagement plugin PoC

3aa3697

clintandrewhall added WIP Work in progress Team:Cloud Team:SharedUX Platform AppEx-SharedUX (formerly Global Experience) t// labels Jan 19, 2022

clintandrewhall requested review from a team, SergeyPoluektov, joshdover, lukeelmers and stacey-gammon January 19, 2022 07:23

clintandrewhall force-pushed the cloud/engagement branch from f420abb to ea7ce1f Compare January 19, 2022 07:50

fixes

2ccdd63

clintandrewhall force-pushed the cloud/engagement branch from ea7ce1f to 2ccdd63 Compare January 19, 2022 08:10

clintandrewhall added 3 commits January 19, 2022 14:13

Fixed type and mock issue

f1bba3b

Made chat divide more clear by removing references to 'drift'

1b475df

Fixing mocks

9bdf552

pgayvallet reviewed Jan 21, 2022

View reviewed changes

Merge branch 'main' into cloud/engagement

71574ff

clintandrewhall force-pushed the cloud/engagement branch from c11c00f to 8e466fd Compare January 25, 2022 01:41

Addressing feedback

fbbe312

clintandrewhall force-pushed the cloud/engagement branch from 8e466fd to fbbe312 Compare January 25, 2022 01:43

SergeyPoluektov added 2 commits January 25, 2022 17:18

Separate config and service provided data

76f1cbe

Add JWT token endpoint

30e8ca9

SergeyPoluektov reviewed Jan 25, 2022

View reviewed changes

clintandrewhall mentioned this pull request Jan 25, 2022

[cloud] Create IFRAME chat component; add to Unified Integrations #123772

Merged

clintandrewhall closed this Jan 25, 2022
