Gino

Leader free SO-100 teleop

A Python library to teleoperate SO-100(1) 5DoF robot arms without the need of a leader arm, using a smartphone as control device.

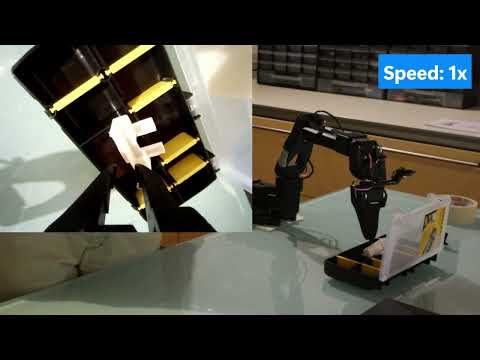

▶ Watch the demo video (YouTube)

⚠️ IMPORTANT NOTE ⚠️

The day before releasing the repo I stumbled upon this post. About 30hrs before this repo went public Hugging Face released their own teleop software which works by the same principle, rendering this whole thing basically useless. I decided to publish this anyway since it was nearly finished and I had already put some effort into it. That said, if you're interested in this functionality, the native LeRobot option is recommended.

How does it work

This is just if you have 5 minutes and are curious about how it works. It's not needed if you just want to use the library.

Background

The library is made up of two main parts:

• motion tracking
• robot control

While the latter was more straightforward, the pose estimation went through some iterations.

• The original idea was to use an IMU, getting rotation from the gyroscope and translation from the accelerometer.

  PROBLEM: I wasn´t able to retrieve translation values from the accelerometer, no matter how I tried.

  NOTE: tried on 2 different sensors:

  • the LSM6DS3 from the Nintendo Switch (1) JoyCons
  • the LSM6DSOXTR from the Arduino Nano RP2040 Connect

• I then switched to ArUco markers which worked after implementing a simple sensor fusion algorithm to complement rotation values with the ones from a gyroscope, video here.

  PROBLEM: in order to avoid motion blur (which capped the speed at which the controller could be used effectively) the ArUco cube needed to be backlit. I built a simple prototype PCB for that, but at that point the solution could not be easily replicated.

  NOTE: this version was likely the one that performed better from a smoothness/accuracy point of view.

• I finally settled on using AR APIs from Unity. Which is the current implementation. I implemented (read "ChatGPT implemented") a Unity AR app which sends absolute position and orientation values over Wi-Fi. The whole app is basically just made of an AR Foundation API call.

  NOTE: I didn´t even think such a thing was possible until I stumbled on teleop from Spes Robotics. Unfortunately their implementation relied on WebXR API, which is not supported on iOS. Since I wanted a cross-platform option*, after a bit of ChatGPTing, I settled on Unity.

Project breakdown

Inside main.py a GinoController instance from src/gino/controller/gino_controller.py is created. Inside it:

• Receiver class from src/gino/udp/receiver.py is used to get and unpack the data sent over Wi-Fi from the smartphone*.

• MoveRobot class from src/gino/kinematics/move_robot.py is used to perform the inverse kinematics calculations needed to turn the 6D coordinates into arm joints states.

  • The class in turn relies on the RobotKinematics Pinocchio wrapper from src/gino/kinematics/kinematics.py. Credits for this and other related code go to Joe Clinton with his hand_teleop repository, which turned out to be really important for this project.

ArUco (deprecated)

As said previously an earlier iteration of the project relied of ArUco markers for the pose estimation. The related code is no longer used by the library itself but I thought that someone could find it useful for other projects, hence left it here.

The related files are inside the archive branch. They're not well documented so feel free to ask in case of need.

Installation

0. LeRobot installation

You should already have created the lerobot conda env and installed the LeRobot library inside it.

Be sure to have the env activated:

conda activate lerobot

1. Clone the Repository

git clone <repository-url>
cd Gino

2. Install Core Dependencies

conda install -c conda-forge numpy scipy matplotlib pyserial pinocchio

App installation

The APK for the app can be found inside the apk folder*.

Usage

Robot Setup

• Ensure your robot is connected via serial port
• Ensure that your pc and smartphone are connected to the same network

App setup

Start the app then:

• 0 Enter the ip of your computer and the desidered UDP port (default is 5005)
• 1 Press the black button to confirm

Commands:

• 2 Homes the robot, restarts teleop when pressed again
• 3 Prevents the robot from moving when pressed
• 4 Slider to control the gripper

Basic Teleoperation

If you just want to teleoperate your robot, run the following command:

python main.py

The following attributes are available:

• --robot (so100|so101), default: so101
• --port serial device, default: /dev/ttyACM0
• --id robot identifier, default: toni
• --udp-port listen port, default: 5005

IMPORTANT: keep in mind that the reference point for position/orientation for the controller will be the point where the controller is located right when the initial homing phase ends. This can be later modified by using button #3.

Dataset Collection

This feature was never implemented because the official version of a similar solution came to be before this was ready.

Acknowledgements

As previously mentioned I would like to warmly thank:

• Joe Clinton for hand_teleop. Which provided a strong base for the development of the inverse kinematics algorithm.
• Spes Robotics for teleop which provided the idea behind the whole app.
• HuggingFace and TheRobotStudio for their awesome work on the LeRobot project.
• LAAS-CNRS for the Pinocchio library. Way too many times we think that research (especially public one) is confined inside labs and never finds applications in the real world. This library and all the amazing things I discovered people create with it demonstrate that it is not the case.

License

This project is licensed under the terms specified in the LICENSE file.
