Django ORM Web Application

AIM

To develop a Django application to store and retrieve data from a database using Object Relational Mapping(ORM).

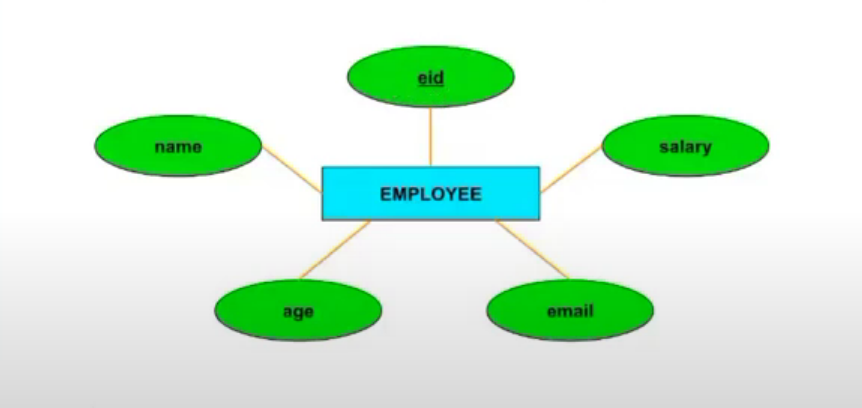

Entity Relationship Diagram

DESIGN STEPS

STEP 1:

Clone the git repository from github

STEP 2:

Create an admin interface for Django

STEP 3:

Create an app and edit the settings.py

STEP 4:

Makemigrations and migrate the changes

STEP 5:

Create admin user and write python code for admin and models

STEP 6:

Make all the migrations to 'myapp'

STEP 7:

Create an employee table to fit 5 fields using runserver command

PROGRAM

admin.py:
from django.contrib import admin
from .models import Student,StudentAdmin,Employee,EmployeeAdmin
admin.site.register(Student,StudentAdmin)
admin.site.register(Employee,EmployeeAdmin)

models.py:
from django.db import models
from django.contrib import admin



class Student (models.Model):
    referencenumber=models.CharField(max_length=20,help_text="reference number")
    name=models.CharField(max_length=100)
    age=models.IntegerField()
    email=models.EmailField()


class StudentAdmin(admin.ModelAdmin):
    list_display=('referencenumber','name','age','email')

class Employee (models.Model):
    emp_id=models.CharField(primary_key=True,max_length=4,help_text='Employee ID')
    ename=models.CharField(max_length=50)
    post=models.CharField(max_length=20)
    salary=models.IntegerField()


class EmployeeAdmin(admin.ModelAdmin):
    list_display=('emp_id','ename','post','salary')

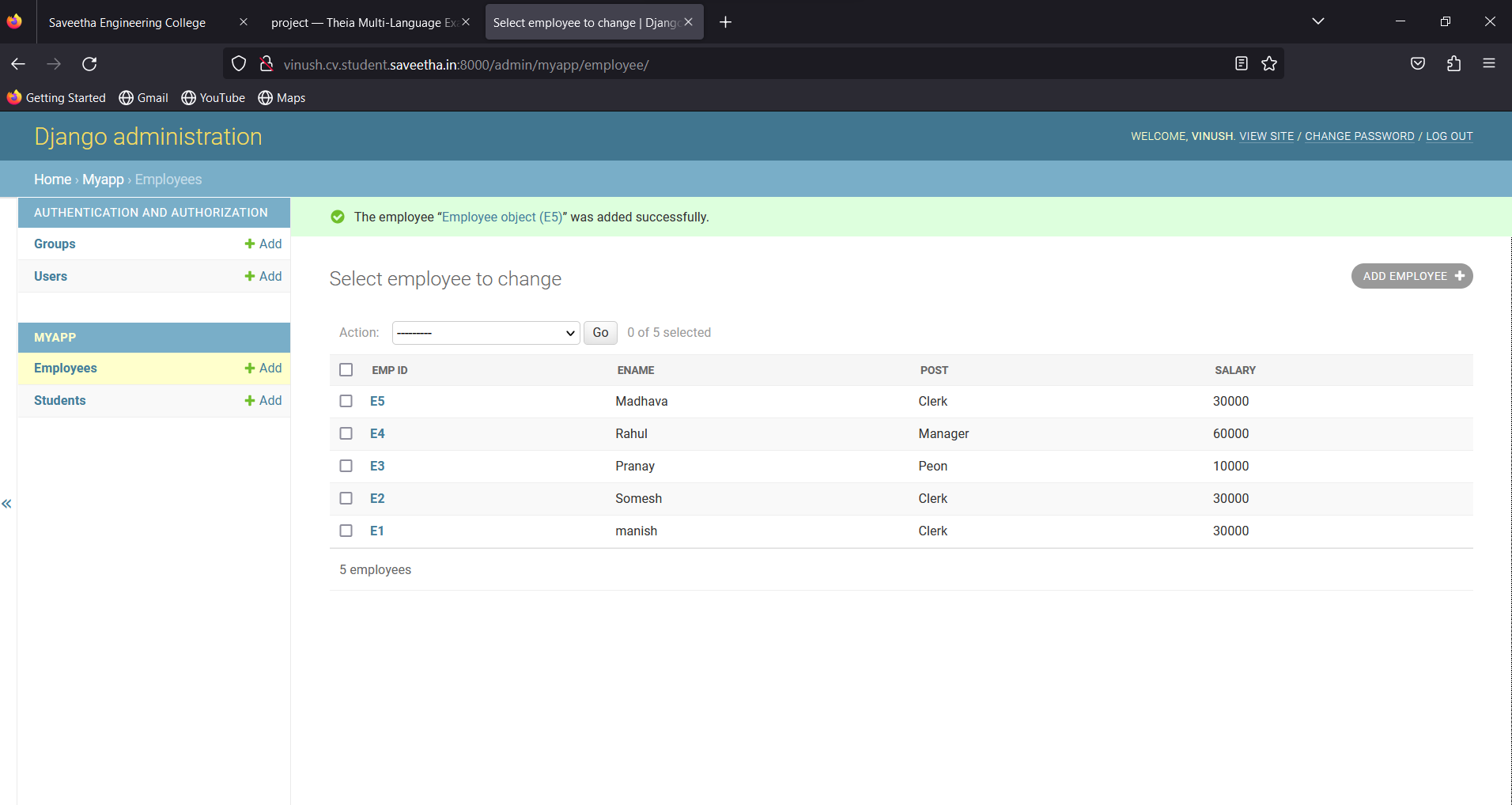

OUTPUT

RESULT

The program for creating an employee database using ORM is executed successfully
