Towards Unified Vision Language Models for Forest Ecological Analysis in Earth Observation

Official repository for paper: "Towards Unified Vision Language Models for Forest Ecological Analysis in Earth Observation" (AAAI-26 AI4ES Workshop)

We present REO-Instruct, a large-scale EO benchmark designed for both descriptive (generation) and scientific regression tasks, with a cognitively interpretable logical chain for forest ecological analysis.

---

🔍 Motivation: Scientific Regression with VLMs is Different

Vision-Language Models (VLMs) show strong perception and reasoning abilities, but scientific regression in EO brings specific challenges:

• 🔢 Token-based outputs vs. continuous targets
  VLMs generate discrete tokens, while we need precise continuous variables (e.g., AGB in Mg/ha).

• 🎯 Semantic loss vs. numeric loss
  Training objectives favor fluent language and semantic coherence, not numeric accuracy.

• 🧱 Error accumulation in multi-token numbers
  Numbers are split into multiple tokens; one wrong token can corrupt the full value.

• 🧬 Different feature needs for description vs. regression
  Human-readable descriptions rely on salient visual patterns, but scientific regression depends on subtle spectral/spatial signals invisible to the naked eye.

REO-Instruct is built exactly around these pain points: to test and drive regression-aware VLMs for EO.

---

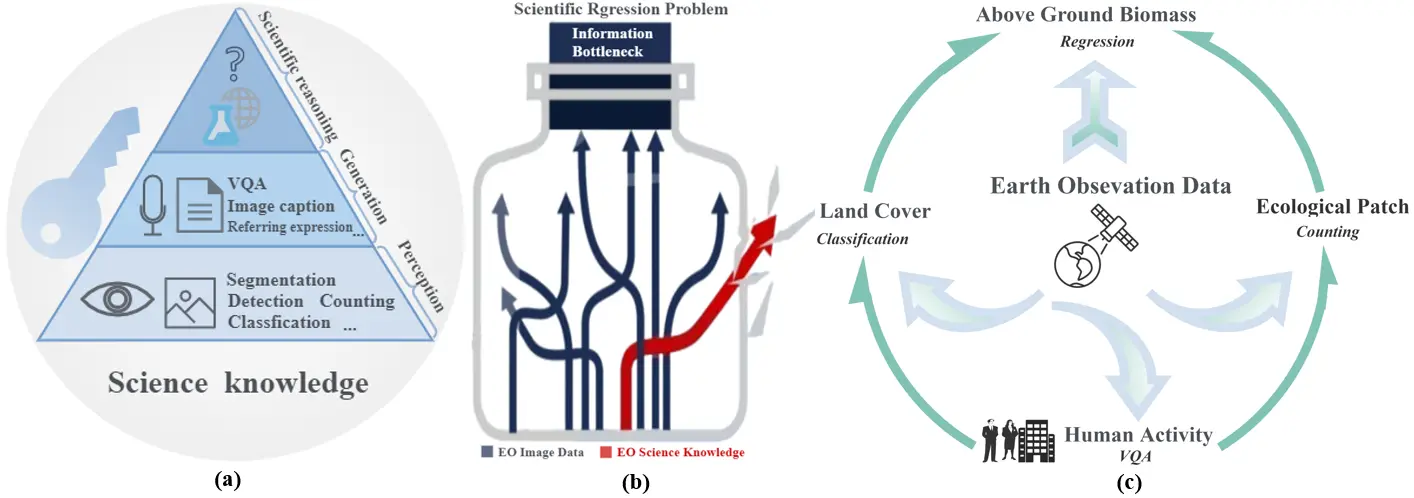

🧠 Logical Chain: From Human Activity to Biomass

A central design of REO-Instruct is a logical chain that links semantic understanding and quantitative prediction in a forest ecological scenario:

Human activity → Land-cover classification → Ecological patch counting → Above-Ground Biomass (AGB) regression

• Human Activity (VQA-style)
  Detects anthropogenic structures and activities (urban, agriculture, infrastructure) and their ecological impacts.

• Land-Cover Classification
  Assigns each patch to professional land-cover classes (e.g., closed forest, cropland), based on Copernicus Global Land Cover.

• Ecological Patch Counting (Regression)
  Estimates the number of distinct ecological patches within the tile, reflecting fragmentation and biodiversity.

• AGB Regression (Scientific Regression)
  Predicts Above-Ground Biomass in Mg/ha, linking EO signals and ecological structure to biophysical quantities.

This chain ensures that all tasks are:

1. Derivable from EO inputs,
2. Logically coupled (not arbitrary multi-tasking),
3. Scientifically interpretable for forest monitoring.

---

🌍 EO Data Design Principles & Overview

To be useful for scientific VLMs, REO-Instruct follows explicit EO data construction principles:

1. Sufficient & Necessary Modalities

   • Multispectral (Sentinel-2 L2A, 13 bands, 10 m)
   • SAR (ALOS-2 PALSAR-2, HH & HV, 25 m)
   • RGB extracted from Sentinel-2 ([4, 3, 2])
     These modalities jointly capture canopy structure, vegetation status, and land use.

2. Balanced, Diverse, Representative

   • Wide coverage of land-cover types
   • Broad AGB range
   • Varied degrees of human influence
   • Different geographic/ecological regions
     → Aims at generalizable models rather than overfitting to a few ecozones.

3. Strict Spatial Alignment

   • Multispectral, SAR, and RGB patches are co-registered.
   • Each sample corresponds to a 25 × 25 pixel patch (~250 m × 250 m), ensuring consistent observation units across sensors.

4. Scientifically Anchored Labels

   • EO imagery is derived from the AGBD dataset (2019–2020).
   • AGB values are consistent with established biomass mapping efforts.

Dataset scale

• 1.6M image–text pairs for training
• ~20K pairs for validation
• ~36K pairs for testing

Modalities per sample:

• ✅ RGB
• ✅ Multispectral (Sentinel-2)
• ✅ SAR (ALOS-2 PALSAR-2, HH & HV)

---

✍️ Text Annotation Design & Hybrid Human–AI Pipeline

REO-Instruct’s text annotations are not generic captions; they are domain-aware, task-aware and follow clear rules to reduce noise in regression:

1. Annotation Principles

• Task-aligned & derivable from EO data
  Each question/description is designed so that the answer can be inferred from the EO patch and associated data.

• Logically coupled across tasks
  Text for human activity, land cover, patch counting, and AGB is mutually consistent and respects the logical chain.

• Clear, concise, professionally structured
  Slight textual perturbations can drastically change regression outputs in LLMs; we therefore avoid noisy, redundant or stylistically ambiguous descriptions.

2. Content Types

• Land-Cover Descriptions

  • Based on Copernicus Global Land Cover classes
  • Over 20 categories; distribution documented in the paper (Figure 3)

• Ecological Patch Counting

  • Patch = continuous land cover unit with distinct ecological traits
  • Counts describe fragmentation and habitat complexity

• VQA for Human Activity Monitoring

  • Q&A about urban areas, roads, croplands, and their potential ecological impact
  • Supports analysis of human–environment interactions (e.g., deforestation, urban sprawl)

• AGB Values (Regression Target)

  • Ground-truth AGB in Mg/ha
  • Enables direct supervision for numeric regression and joint training with text.

3. Generation Pipeline

• Model-assisted generation with ChatGPT-4o

  • Carefully designed prompts control:
    • Land-cover label sets
    • Question templates (100+ templates)
    • Separation of regression-related vs. descriptive content

• Automatic Consistency Checks

  • Scripts cross-check annotations with trusted sources, e.g. Copernicus land cover.
  • Obvious mismatches are corrected or removed.

• Expert Manual Review (Val/Test)

  • Senior experts manually inspect validation and test annotations.
  • Ensures scientific correctness and consistent terminology for benchmarking.

This two-stage pipeline (automatic + expert) aims to deliver a benchmark that is both scalable and trustworthy.

---

📊 Benchmark Tasks & Evaluation Protocols

REO-Instruct provides standardized evaluation splits and protocols for four representative tasks:

1. Land-Cover Classification (Generation)

   • Metric: Overall Accuracy, Macro-averaged Precision/Recall/F1.

2. Ecological Patch Counting (Regression)

   • Metrics: RMSE, MAE, R², and discretized Overall Accuracy.

3. Human Activity Monitoring (VQA)

   • Metric: Answer Accuracy (%).

4. Above-Ground Biomass (AGB) Regression (Scientific Regression)

   • Metrics: RMSE, MAE, R².

We benchmark both domain-specific VLMs (e.g., GeoChat, LHRS-Bot) and general-purpose VLMs (e.g., LLaVA, Qwen2-VL, ChatGPT-4o), as well as classical EO models (e.g., U-Net on multispectral inputs).

---

🧪 Key Findings (High-level)

• Current VLMs can handle content understanding & VQA, but

  • show low accuracy in fine-grained land-cover classification,
  • and poor numeric performance in regression tasks.

• Even with fine-tuning, AGB regression with VLMs often underperforms a dedicated U-Net on multispectral imagery.

• Many VLMs refuse or fail to answer numeric queries reliably, resulting in many “unanswerable” cases.

These results indicate that scientific VLMs for EO need regression-aware architectures and better exploitation of multimodal EO inputs, beyond straightforward instruction tuning.

---

🗂️ Dataset Download

🛰️ Earth Observation Imagery

📥 Download All (extraction code: 8efp)

• Training: 📥 Download (extraction code: 5vw6)
• Validation: 📥 Download (extraction code: gwjy)
• Test: 📥 Download (extraction code: y7gv)

📝 Text Annotations

• Training: Stage 1 · Stage 2
• Validation: 📥 Download
• Test: 📥 Download

📢 Release Status

• 🤗 Hugging Face Dataset: Coming Soon
• 🗺️ TorchGeo Integration (with help of outstanding colleague Adam J. Stewart): In Progress

---

🙏 Acknowledgements

We gratefully acknowledge the authors of AGBD: A Global-scale Biomass Dataset for providing high-quality biomass-related imagery data:

• Ghjulia Sialelli, Torben Peters, Jan D. Wegner, Konrad Schindler

Please also consider citing the following work if you use REO-Instruct data or biomass-related imagery:

@article{xue2025towards,
  title   = {Towards Unified Vision Language Models for Forest Ecological Analysis in Earth Observation},
  author  = {Xizhe Xue and Xiaoxiang Zhu},
  journal = {Proceedings of the AAAI Conference on Artificial Intelligence, AI4ES Workshop},
  year    = {2025}
}
