Add new option for json output of dotnet list package to release 7.2.xx branch

[erdembayar]

Related to: NuGet/NuGet.Client#4855
Add new --format option for dotnet list package command. NuGet change was inserted to sdk here: #28913

[baronfel]

A few notes around how we could leverage System.CommandLine features to have a more consistent experience with the rest of the .NET CLI.

[erdembayar]

@baronfel
I addressed the PR comments, please review again.

[baronfel]

I built and ran this PR to get a sense of the help output:

D:///////dotnet on  dev-eryondon-add-dotnetlistpackage-formatoption2 ≡  2
08:54:21 ❯ .\dotnet.exe list package --help
Description:
  List all package references of the project or solution.

Usage:
  dotnet list [<PROJECT | SOLUTION>] package [options]

Arguments:
  <PROJECT | SOLUTION>  The project or solution file to operate on. If a file is not specified, the command will search the current directory for one. [default:
                        D:\Code\dotnet-sdk\artifacts\bin\redist\Debug\dotnet\]

Options:
  -v, --verbosity <LEVEL>                  Set the MSBuild verbosity level. Allowed values are q[uiet], m[inimal], n[ormal], d[etailed], and diag[nostic].
  --outdated                               Lists packages that have newer versions. Cannot be combined with '--deprecated' or '--vulnerable' options.
  --deprecated                             Lists packages that have been deprecated. Cannot be combined with '--vulnerable' or '--outdated' options.
  --vulnerable                             Lists packages that have known vulnerabilities. Cannot be combined with '--deprecated' or '--outdated' options.
  --framework <FRAMEWORK | FRAMEWORK\RID>  Chooses a framework to show its packages. Use the option multiple times for multiple frameworks.
  --include-transitive                     Lists transitive and top-level packages.
  --include-prerelease                     Consider packages with prerelease versions when searching for newer packages. Requires the '--outdated' option.
  --highest-patch                          Consider only the packages with a matching major and minor version numbers when searching for newer packages. Requires the '--outdated' option.
  --highest-minor                          Consider only the packages with a matching major version number when searching for newer packages. Requires the '--outdated' option.
  --config <CONFIG_FILE>                   The path to the NuGet config file to use. Requires the '--outdated', '--deprecated' or '--vulnerable' option.
  --source <SOURCE>                        The NuGet sources to use when searching for newer packages. Requires the '--outdated', '--deprecated' or '--vulnerable' option.
  --interactive                            Allows the command to stop and wait for user input or action (for example to complete authentication).
  --format <FORMAT>                        Specifies the output format type for the list packages command.
  -?, -h, --help                           Show command line help.

I noticed that the valid choices for the output format weren't shown - instead the FORMAT text was. I tested and if you remove the use of ArgumentHelpName on the option definition, then System.CommandLine will do what I was hoping to see, which is this:

D:///////dotnet on  dev-eryondon-add-dotnetlistpackage-formatoption2 ≡  ~1  2
09:03:31 ❯ .\dotnet.exe list package --help
Description:
  List all package references of the project or solution.                                                                                                                                                                                                                                                                                                                             Usage:
  dotnet list [<PROJECT | SOLUTION>] package [options]

Arguments:
  <PROJECT | SOLUTION>  The project or solution file to operate on. If a file is not specified, the command will search the current directory for one. [default:
                        D:\Code\dotnet-sdk\artifacts\bin\redist\Debug\dotnet\]

Options:
  -v, --verbosity <LEVEL>                  Set the MSBuild verbosity level. Allowed values are q[uiet], m[inimal], n[ormal], d[etailed], and diag[nostic].
  --outdated                               Lists packages that have newer versions. Cannot be combined with '--deprecated' or '--vulnerable' options.
  --deprecated                             Lists packages that have been deprecated. Cannot be combined with '--vulnerable' or '--outdated' options.
  --vulnerable                             Lists packages that have known vulnerabilities. Cannot be combined with '--deprecated' or '--outdated' options.
  --framework <FRAMEWORK | FRAMEWORK\RID>  Chooses a framework to show its packages. Use the option multiple times for multiple frameworks.
  --include-transitive                     Lists transitive and top-level packages.
  --include-prerelease                     Consider packages with prerelease versions when searching for newer packages. Requires the '--outdated' option.
  --highest-patch                          Consider only the packages with a matching major and minor version numbers when searching for newer packages. Requires the '--outdated' option.
  --highest-minor                          Consider only the packages with a matching major version number when searching for newer packages. Requires the '--outdated' option.
  --config <CONFIG_FILE>                   The path to the NuGet config file to use. Requires the '--outdated', '--deprecated' or '--vulnerable' option.
  --source <SOURCE>                        The NuGet sources to use when searching for newer packages. Requires the '--outdated', '--deprecated' or '--vulnerable' option.
  --interactive                            Allows the command to stop and wait for user input or action (for example to complete authentication).
  --format <console|json>                  Specifies the output format type for the list packages command.
  -?, -h, --help                           Show command line help.

note the change in the way the formats are displayed. I think you should remove the use of ArgumentHelpName and the resource text for that. What do you think? You can test this output yourself by building via ./build.cmd and then navigating to \artifacts\bin\redist\Debug\dotnet and running the dotnet binary there.

[erdembayar]

--interactive Allows the command to stop and wait for user input or action (for example to complete authentication).
--format <console|json> Specifies the output format type for the list packages command.
-?, -h, --help Show command line help.

note the change in the way the formats are displayed. I think you should remove the use of ArgumentHelpName and the resource text for that. What do you think? You can test this output yourself by building via `./build.cmd` and then navigating to `\artifacts\bin\redist\Debug\dotnet` and running the `dotnet` binary there.

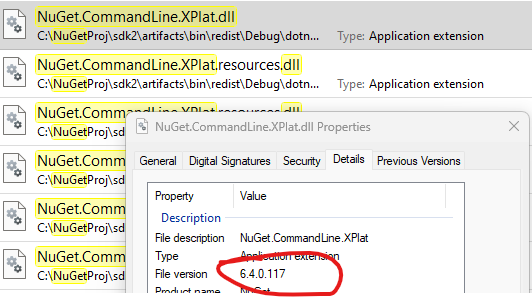

I tried to test locally build dotnet binary, but it's failing because it doesn't have latest nuget binary. Should I cherry-pick my change (NuGet/NuGet.Client#4855) to nuget 6.4 and create PR to merge to release/7.0.2xx? Or instead, I just continue with other sdk PR #28564 for sdk main branch? Currently our nuget asset inserted to sdk main branch only.
Fryi @nkolev92 @dsplaisted

.\dotnet.exe list C:\repos\NuGetApiTest\NuGetApiTest\NuGetApiTest.csproj package --format console
Specify --help for a list of available options and commands.
error: Unrecognized option '--format:console'


Usage: NuGet.CommandLine.XPlat.dll package list [arguments] [options]

Arguments:
  <PROJECT | SOLUTION>  A path to a project, solution file or directory.

Options:
  -h|--help               Show help information
  --force-english-output  Forces the application to run using an invariant, English-based culture.
  --framework             Specifies the target framework for which the packages will be listed.
  --deprecated            Displays only the packages marked deprecated by the authors.
  --outdated              Displays only the packages that need updates with the latest version from the sources.
  --vulnerable            Displays only the packages flagged as vulnerable.
  --include-transitive    Includes transitive packages too in the result.
  --include-prerelease    Considers prerelease versions when looking for latest. Works only with `--outdated`.
  --highest-patch         Considers only the versions with matching minor and major. Works only with `--outdated`.
  --highest-minor         Considers only the versions with matching major. Works only with `--outdated`.
  --source                Sources to lookup for latest versions. Works only with `--outdated`.
  --config                A path to a config file to specify sources. Works only with `--outdated`.
  --interactive           Allow the command to block and require manual action for operations like authentication.
  -v|--verbosity          Set the verbosity level of the command. Allowed values are q[uiet], m[inimal], n[ormal], d[etailed], and diag[nostic].

[nkolev92]

I tried to test locally build dotnet binary, but it's failing because it doesn't have latest nuget binary. Should I cherry-pick my change (NuGet/NuGet.Client#4855) to nuget 6.4 and create PR to merge to release/7.0.2xx? Or instead, I just continue with other sdk PR #28564 for sdk main branch? Currently our nuget asset inserted to sdk main branch only.

I imagine the SDK will eventually setup rules so that our 6.5 insertions go in 7.0.2xx.

6.4 NuGet matches 7.0.1xx of the .NET SDK.

[erdembayar]

I tried to test locally build dotnet binary, but it's failing because it doesn't have latest nuget binary. Should I cherry-pick my change (NuGet/NuGet.Client#4855) to nuget 6.4 and create PR to merge to release/7.0.2xx? Or instead, I just continue with other sdk PR #28564 for sdk main branch? Currently our nuget asset inserted to sdk main branch only.

I imagine the SDK will eventually setup rules so that our 6.5 insertions go in 7.0.2xx.

6.4 NuGet matches 7.0.1xx of the .NET SDK.

@baronfel @dsplaisted
Should I wait until nuget 6.5 start following into 7.0.2xx before merge? If I merge as it's now, then we'll get broken experience. We're already on 6.5 and it's currently being inserted into main.

[dsplaisted]

@marcpopMSFT What do we need to do to set up flow from NuGet 6.5 into release/7.0.2xx? This PR is blocked on that I believe.

[marcpopMSFT]

There is already codeflow for 17.5 to main and 7.0.2xx (see subscription d74d256b-6327-493c-3777-08daa2f83374). Nuget just controls when they promote a build to flow. @kartheekp-ms on whether there are 17.5 flows coming soon.

[kartheekp-ms]

@erdembayar - I am bit confused. I assume this change should be made to main branch because NuGet side implementation for this work is inserted into dotnet/sdk main branch

sdk/eng/Version.Details.xml

Line 104 in 840f689

<Dependency Name="NuGet.Build.Tasks" Version="6.5.0-preview.2.81">

release/7.0.2xx branch don't have the NuGet side implementation for dotnet list package json output functionality.

@marcpopMSFT - The url says https://github.com/dotnet/nuget.client instead of https://github.com/nuget/nuget.client for subscription id d74d256b-6327-493c-3777-08daa2f8337 (see the following command output). I think this is the reason why NuGet insertions into dotnet SDK are not flowing into release/7.0.2xx branch. Can we fix that please?

 darc get-subscriptions --ids d74d256b-6327-493c-3777-08daa2f83374
https://github.com/dotnet/nuget.client (VS 17.5) ==> 'https://github.com/dotnet/sdk' ('release/7.0.2xx')

VS 17.5 channel displays only `main` branch but not `release/7.0.2xx` branch because of the configuration error I mentioned above (AFAIK)
 darc get-subscriptions --target-repo dotnet/sdk --source-repo nuget/nuget.client --channel "VS 17.5"
https://github.com/nuget/nuget.client (VS 17.5) ==> 'https://github.com/dotnet/sdk' ('main')

[marcpopMSFT]

Good catch as I didn't notice the type before. Fixed the dotnet and triggered: #29113

[erdembayar]

darc get-subscriptions --ids d74d256b-6327-493c-3777-08daa2f83374

Looks good now.

darc get-subscriptions --ids d74d256b-6327-493c-3777-08daa2f83374
https://github.com/nuget/nuget.client (VS 17.5) ==> 'https://github.com/dotnet/sdk' ('release/7.0.2xx')
  - Id: d74d256b-6327-493c-3777-08daa2f83374
  - Update Frequency: EveryBuild
  - Enabled: True
  - Batchable: False
  - PR Failure Notification tags:
  - Merge Policies:
    Standard

darc get-subscriptions --target-repo dotnet/sdk --source-repo nuget/nuget.client --channel "VS 17.5"
https://github.com/nuget/nuget.client (VS 17.5) ==> 'https://github.com/dotnet/sdk' ('main')
 - Id: fcb199f6-ff33-44a0-f3ef-08d8e97c775d
 - Update Frequency: EveryBuild
 - Enabled: True
 - Batchable: False
 - PR Failure Notification tags:
 - Merge Policies:
   Standard
 - Last Build: 6.5.0.81 (a487c8336b29a0e53dc46f4aab424fdd5de50e72)
https://github.com/nuget/nuget.client (VS 17.5) ==> 'https://github.com/dotnet/sdk' ('release/7.0.2xx')
 - Id: d74d256b-6327-493c-3777-08daa2f83374
 - Update Frequency: EveryBuild
 - Enabled: True
 - Batchable: False
 - PR Failure Notification tags:
 - Merge Policies:
   Standard

[erdembayar]

@erdembayar - I am bit confused. I assume this change should be made to main branch because NuGet side implementation for this work is inserted into dotnet/sdk main branch

This one flow into main later.

[erdembayar]

@dsplaisted
I can see #29113 is merged. Now is it safe to merge this PR?

[dsplaisted]

I can see #29113 is merged. Now is it safe to merge this PR?

It would be good to add a sanity check test that verifies that the new option works correctly. Barring that, try testing locally again and see if it works (after merging in the latest changes from release/7.0.2xx).

[erdembayar]

It would be good to add a sanity check test that verifies that the new option works correctly. Barring that, try testing locally again and see if it works (after merging in the latest changes from release/7.0.2xx).

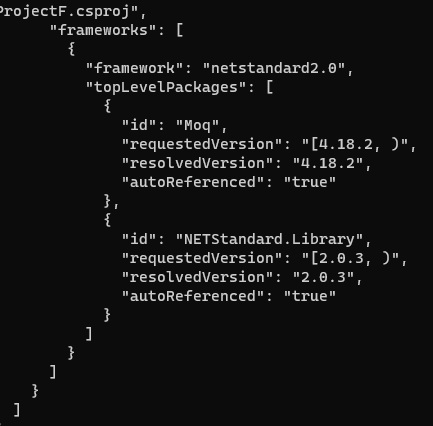

I can see actual json output now, so I'm merging now.

[erdembayar]

@dsplaisted
When do I expect sdk binary with this change?

[marcpopMSFT]

If you mean an installable SDK, we need a CI build of 7.0.2xx first (I don't see one started for this PR yet), then codeflow into installer, then a ci build there. So half a day to a few days from now (we usually don't track individual changes that closely in codeflow).

[erdembayar]

Where can I get latest nightly build?

[baronfel]

@erdembayar the table with the various download links for the nightly SDK installers is here. I think there's a delay in the codeflow, though, blocked by this PR which has a lot of discussion about NuGet.Client and SourceBuild prebuilts, so I'm not sure that the version of 7.0.2xx listed in that table would have your changes yet.
