[Gutenberg] File Block : Consolidated Media Picker + WP Media Source integration

[jd-alexander]

gutenberg: WordPress/gutenberg#26960
gutenberg-mobile: wordpress-mobile/gutenberg-mobile#2805
WPiOS: wordpress-mobile/WordPress-iOS#15291

Solution

This solution seeks to address the ability to add a file to the File Block from the device or WordPress media library utilizing the media picker components that are present within the codebase. This PR brings consistent file picking behavior between both the Consolidated Media Picker and the Normal Picker.

The primary changes are:

1. introducing a SINGLE_FILE_PICKER type in the MediaBrowserType so the behavior that's specific to the File Block can be constrained by this picker type.

2. For the MediaBrowserActivity when a single file is being selected the mBrowserType.isSingleFilePicker() flag is used to ensure the entire media list is loaded.

3. showFilePicker now accepts canMultiSelect so that onAddFileClicked can pass the allowMultipleSelection

4. The GutenbergEditor's WP Media Library FileButtonClicked behavior was wired to the media picker so that a picker with the WP Media Library as it's source could be created.

Testing

Before testing, I toggled the default value in the file ConsolidatedMediaPickerFeatureConfig to switch between each picker type.

Normal Media Picker (consolidated media picker disabled)

Picking local files.

1. Create a new post.
2. Add a File Block.
3. Press Choose File.
4. Select “Choose from device”.
5. The System Picker should be visible.
6. You should be able to pick a file.
7. You should see the file name and the download button activated along with an upload progress.
8. You can preview the post and download the file for further validation.

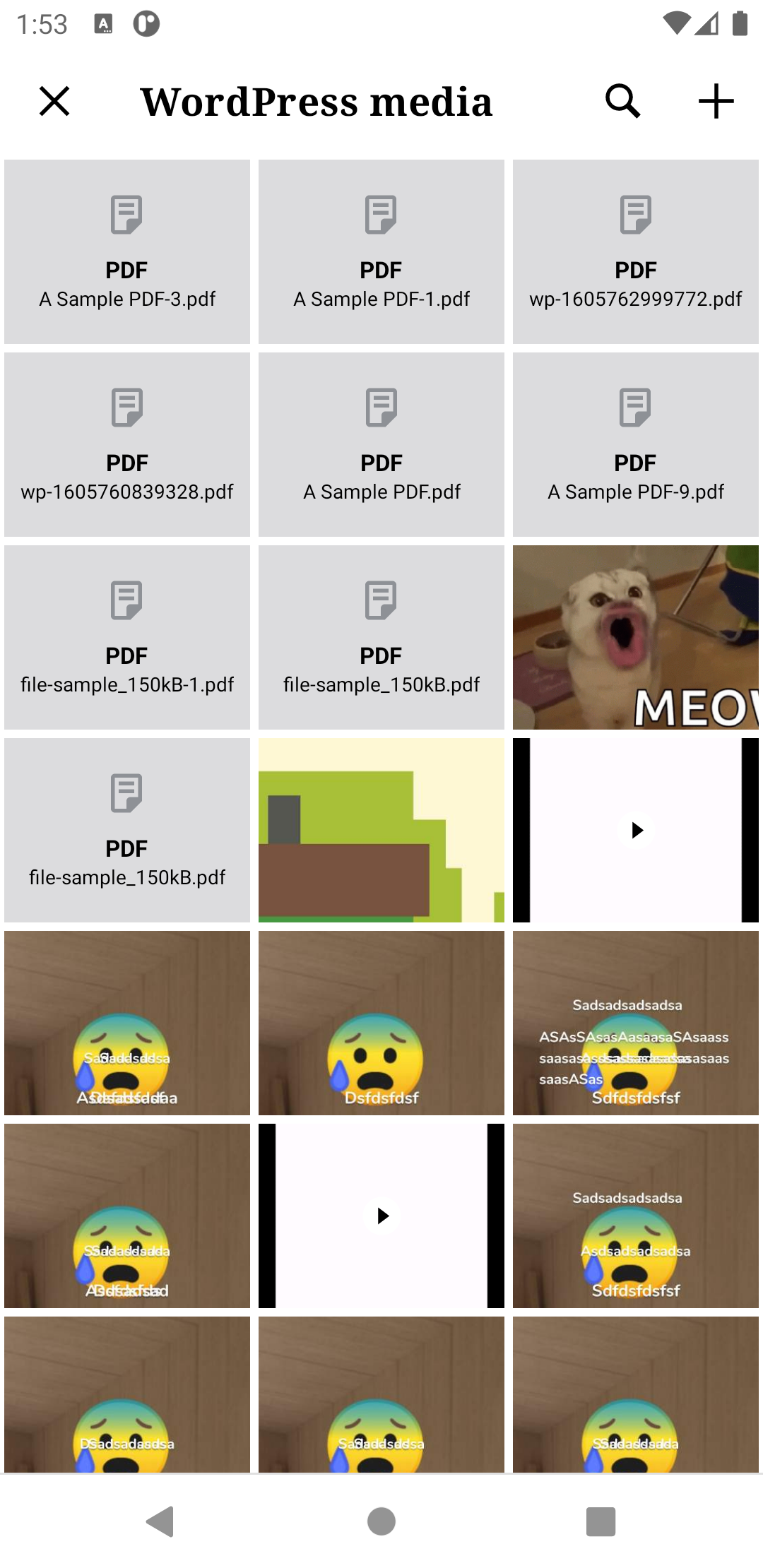

   Picking WP media library files

Select Option	See Picker

Picking WP media files.

1. Create a new post.
2. Add a File Block.
3. Press Choose File.
4. Select “WordPress Media Library”
5. Select a file.
6. You should see the file name and the download button activated.
7. You can preview the post and download the file for further validation.

Select Option	See Picker

Consolidated Media Picker

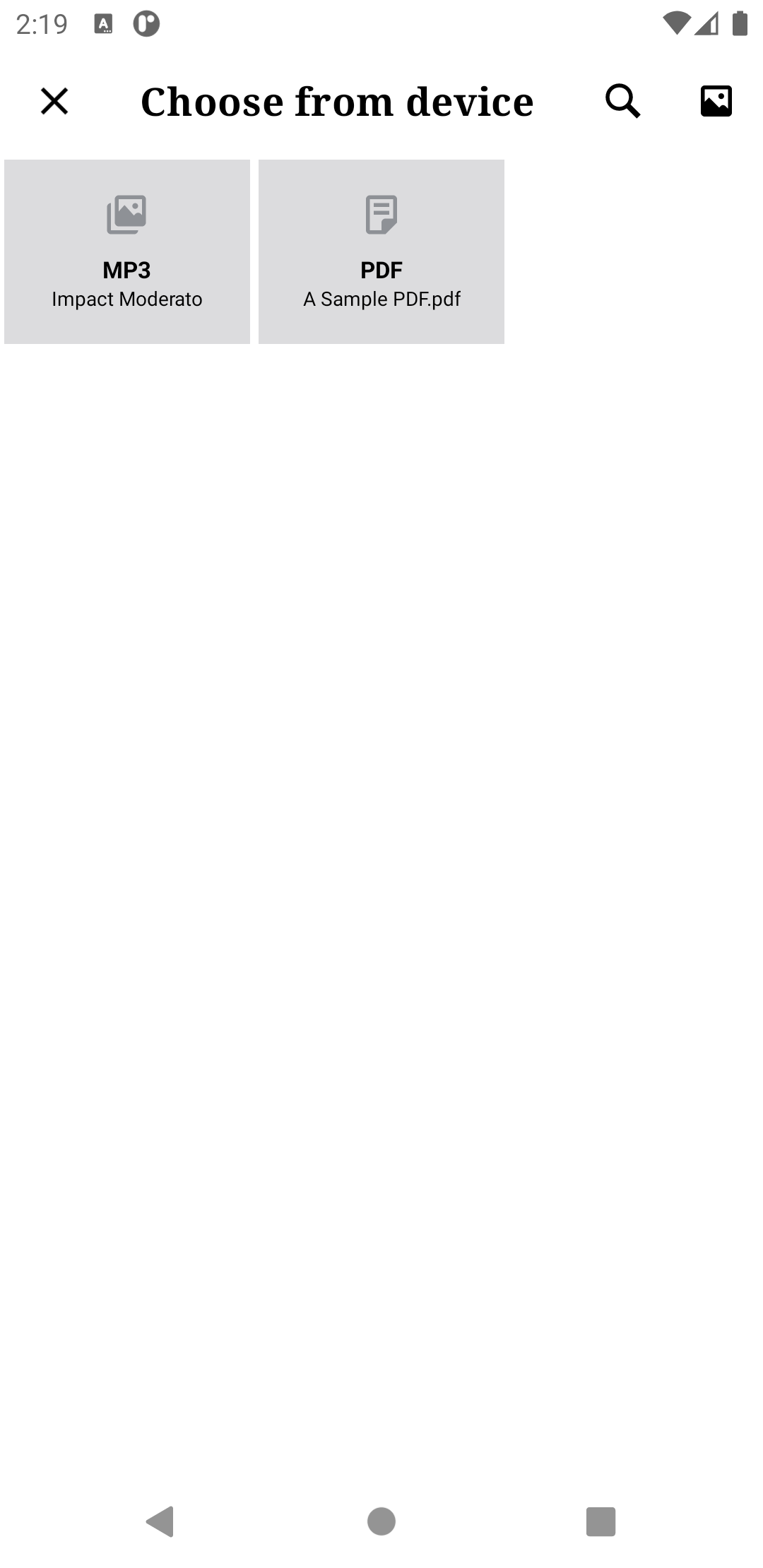

Picking local files.

1. Create a new post.
2. Add a File Block.
3. Press Choose File.
4. Select “Choose from device”.
5. The File Picker should be visible.
6. You should be able to pick a file.
7. You should see the file name and the download button activated along with an upload progress.
8. You can preview the post and download the file for further validation.

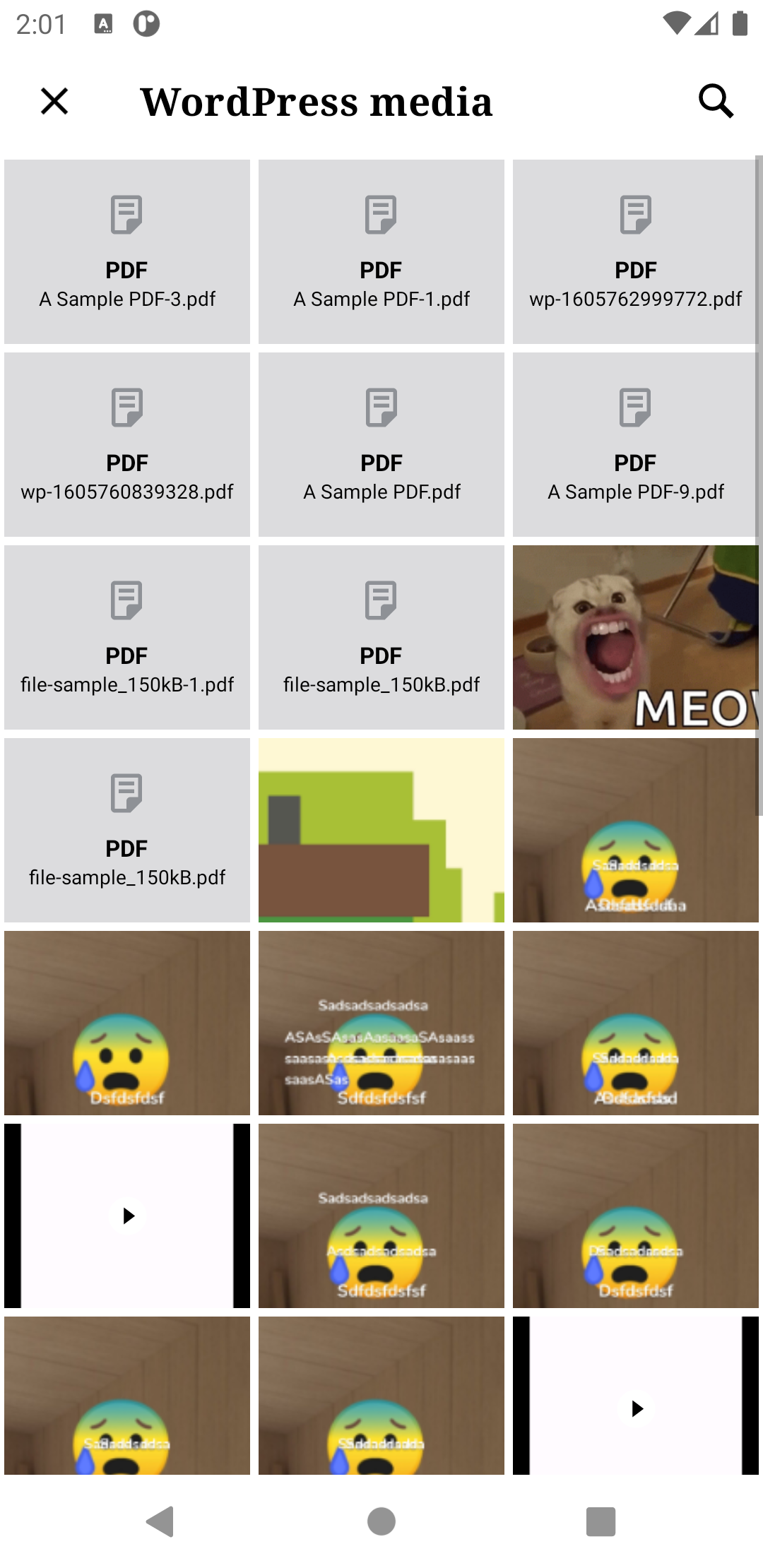

Picking WP media library files

Select Option	See Picker

Picking WP media picker files.

1. Create a new post.
2. Add a File Block.
3. Press Choose File.
4. Select “WordPress Media Library”
5. Select a file.
6. You should see the file name and the download button activated.
7. You can preview the post and download the file for further validation.

Select Option	See Picker

Reviewing

Only 1 reviewer is needed but anyone can review.

Submitter Checklist

• I have considered if this change warrants user-facing release notes and have added them to RELEASE-NOTES.txt if necessary.
• I have considered adding accessibility improvements for my changes.
• If it's feasible, I have added unit tests.

[peril-wordpress-mobile]

You can trigger optional UI/connected tests for these changes by visiting CircleCI here.

[peril-wordpress-mobile]

You can test the changes on this Pull Request by downloading the APK here.

[planarvoid]

hey @jd-alexander , the changes look good but I've tried the APK from this PR and I don't see the File block in the GB editor. Any idea how to get it there?

[jd-alexander]

Hey @planarvoid I think in a case like this you might have to build Gutenberg from source. Is that enabled for you in gradle.properties?

wp.BUILD_GUTENBERG_FROM_SOURCE = true

[jd-alexander]

I just saw this error below while doing an upload. I am going to investigate it soon. It doesn't seem related to this PR though.

 WARN  Possible Unhandled Promise Rejection (id: 0):
"Unsupported path: /wp/v2/blocks?per_page=100&context=edit&_locale=user"

 WARN  Possible Unhandled Promise Rejection (id: 1):
"Unsupported path: /wp/v2/posts/1?context=edit&_locale=user"

 WARN  Network Error:  {
  "framesToPop": 1,
  "nativeStackAndroid": [
    {
      "methodName": "lambda$fetchRequest$1",
      "lineNumber": 285,
      "file": "RNReactNativeGutenbergBridgeModule.java",
      "class": "org.wordpress.mobile.ReactNativeGutenbergBridge.RNReactNativeGutenbergBridgeModule"
    },
    {
      "methodName": "accept",
      "lineNumber": 4,
      "file": null,
      "class": "org.wordpress.mobile.ReactNativeGutenbergBridge.-$$Lambda$RNReactNativeGutenbergBridgeModule$0lGvoMCv1-6Tgohm_CUyz143k0w"
    },
    {
      "methodName": "invoke",
      "lineNumber": 34,
      "file": "ReactNativeRequestHandler.kt",
      "class": "org.wordpress.android.ui.posts.reactnative.ReactNativeRequestHandler$performGetRequest$1$2"
    },
    {
      "methodName": "invoke",
      "lineNumber": 20,
      "file": "ReactNativeRequestHandler.kt",
      "class": "org.wordpress.android.ui.posts.reactnative.ReactNativeRequestHandler$performGetRequest$1$2"
    },
    {
      "methodName": "handleResponse",
      "lineNumber": 64,
      "file": "ReactNativeRequestHandler.kt",
      "class": "org.wordpress.android.ui.posts.reactnative.ReactNativeRequestHandler"
    },
    {
      "methodName": "access$handleResponse",
      "lineNumber": 20,
      "file": "ReactNativeRequestHandler.kt",
      "class": "org.wordpress.android.ui.posts.reactnative.ReactNativeRequestHandler"
    },
    {
      "methodName": "invokeSuspend",
      "lineNumber": 34,
      "file": "ReactNativeRequestHandler.kt",
      "class": "org.wordpress.android.ui.posts.reactnative.ReactNativeRequestHandler$performGetRequest$1"
    },
    {
      "methodName": "resumeWith",
      "lineNumber": 33,
      "file": "ContinuationImpl.kt",
      "class": "kotlin.coroutines.jvm.internal.BaseContinuationImpl"
    },
    {
      "methodName": "afterResume",
      "lineNumber": 214,
      "file": "Builders.common.kt",
      "class": "kotlinx.coroutines.UndispatchedCoroutine"
    },
    {
      "methodName": "resumeWith",
      "lineNumber": 113,
      "file": "AbstractCoroutine.kt",
      "class": "kotlinx.coroutines.AbstractCoroutine"
    },
    {
      "methodName": "resumeWith",
      "lineNumber": 46,
      "file": "ContinuationImpl.kt",
      "class": "kotlin.coroutines.jvm.internal.BaseContinuationImpl"
    },
    {
      "methodName": "run",
      "lineNumber": 56,
      "file": "DispatchedTask.kt",
      "class": "kotlinx.coroutines.DispatchedTask"
    },
    {
      "methodName": "runSafely",
      "lineNumber": 571,
      "file": "CoroutineScheduler.kt",
      "class": "kotlinx.coroutines.scheduling.CoroutineScheduler"
    },
    {
      "methodName": "executeTask",
      "lineNumber": 738,
      "file": "CoroutineScheduler.kt",
      "class": "kotlinx.coroutines.scheduling.CoroutineScheduler$Worker"
    },
    {
      "methodName": "runWorker",
      "lineNumber": 678,
      "file": "CoroutineScheduler.kt",
      "class": "kotlinx.coroutines.scheduling.CoroutineScheduler$Worker"
    },
    {
      "methodName": "run",
      "lineNumber": 665,
      "file": "CoroutineScheduler.kt",
      "class": "kotlinx.coroutines.scheduling.CoroutineScheduler$Worker"
    }
  ],
  "userInfo": {
    "message": "rest_post_invalid_id",
    "code": 404
  },
  "message": null,
  "code": "404"
}

[planarvoid]

hey @jd-alexander , why would that be necessary? I just want to test the changes. Why wouldn't everything be in the APK on this PR? Should this flag be enabled for the Jalapeno build?

[jd-alexander]

hey @jd-alexander , why would that be necessary? I just want to test the changes. Why wouldn't everything be in the APK on this PR? Should this flag be enabled for the Jalapeno build?

Good question! I moved the conversation into Slack to verify that this isn't necessary so I can make testing easier for you 😄

[planarvoid]

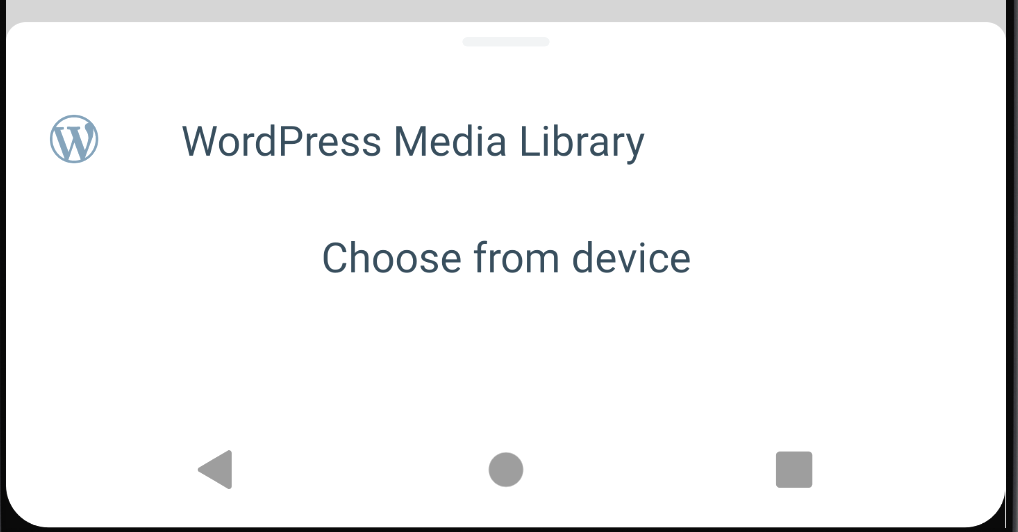

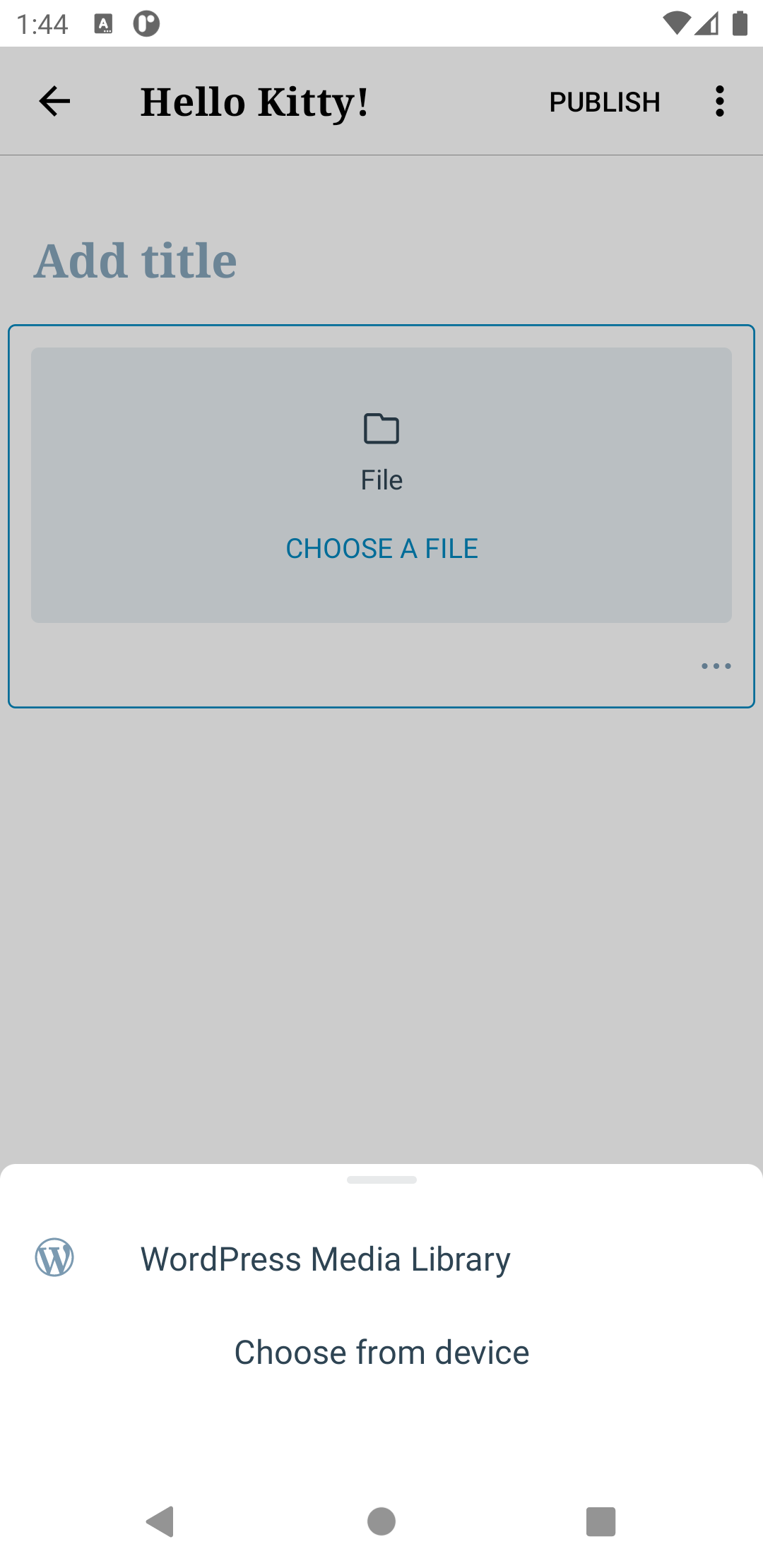

I've tested the file block picker and it's looking good. The only thing looking weird is that the "Choose from device" option is moved to the right (it's like that even in your PRs). Any idea why that's happening @jd-alexander ?

[etoledom]

The only thing looking weird is that the "Choose from device" option is moved to the right

That's right, an icon missing there.
I'm adding a file icon. @iamthomasbishop - what do you think?

[iamthomasbishop]

@etoledom I think we're already using a "mobile phone" icon (or similar...I don't have my Android phone on me to check 😄) for other instances of the "choose from device" option, so we can use that same icon and label here.

[jd-alexander]

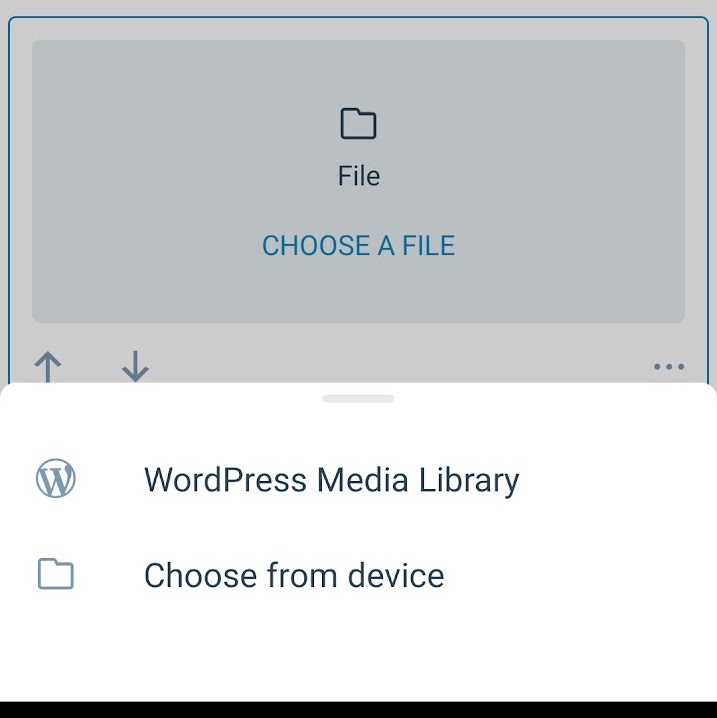

The changes mentioned above have been implemented here

[etoledom]

Thank you @jd-alexander for the update!
I have updated the branch with the latest reference to gutenberg.

@planarvoid - could you please take another look? Thanks!

[etoledom]

Smoke tested and its working great to me.
@planarvoid - if you are happy with the code side of things, let's go ahead

[etoledom]

Moved this to target gutenberg/after_1.42.0
