[Site design revamp] Add helper text to the bottom of the theme picker

[mkevins]

Fixes #16478

Description

This PR adds a bottom helper text to the theme picker screen by implementing an optional footer parameter to layouts recycle view. This is useful for working around scroll issues in the layout that houses the recycler view. It introduces a new abstraction LayoutRowViewHolder from which LayoutItemViewHolder and LayoutFooterViewHolder extend:

classDiagram
  class LayoutRowViewHolder
  <<Sealed>> LayoutRowViewHolder
  LayoutRowViewHolder <|-- LayoutItemViewHolder: Extends
  LayoutRowViewHolder <|-- LayoutFooterViewHolder: Extends

Loading

The footer is inflated when needed from the passed resource id (the overriden item count is incremented when not null).

It also adds the footer as a LayoutCategoryViewType so that it isn't mixed with the regular items during view recycling.

To test:

Theme picker

1. Start the site creation flow
2. Select an intent (or skip)
3. Type a site name (or skip)
4. Expect to see the theme picker screen
5. Scroll to the bottom of the theme picker screen
6. Expect to see the helper text in the footer at the bottom of the screen

Page picker

1. Start the page picker flow (create a new page from the page list screen)
2. Expect to see the page picker screen
3. Scroll to the bottom of the page layout categories
4. Expect that the footer is absent

Regression Notes

1. Potential unintended areas of impact
   Page layout picker

2. What I did to test those areas of impact (or what existing automated tests I relied on)
   Manual and automated testing.

3. What automated tests I added (or what prevented me from doing so)
   Our tests are currently structured to test the view models, but these changes don't rely on any view model logic.

PR submission checklist:

• I have completed the Regression Notes.
• I have considered adding accessibility improvements for my changes.
• I have considered if this change warrants user-facing release notes and have added them to RELEASE-NOTES.txt if necessary.

[peril-wordpress-mobile]

You can trigger optional UI/connected tests for these changes by visiting CircleCI here.

[peril-wordpress-mobile]

You can test the changes on this Pull Request by downloading the APKs:

• Jetpack-pr-16555-build-123633.apk

• WordPress-pr-16555-build-123633.apk

[ovitrif]

Great work @mkevins!

The solution is elegant imho and works as expected 👍

I did notice two small issues:

1. Sometimes the Choose a theme screen starts scrolled to the bottom of the recycler view (this happens only when the device is proxied to use a wpcom sandbox with the pending api changes active):

testpreview.mp4

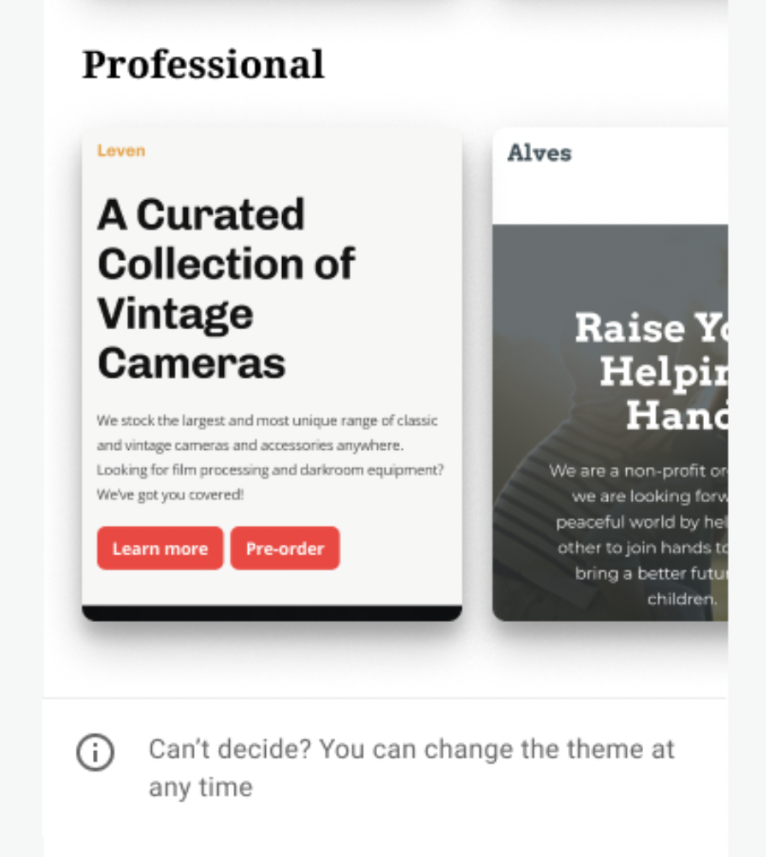

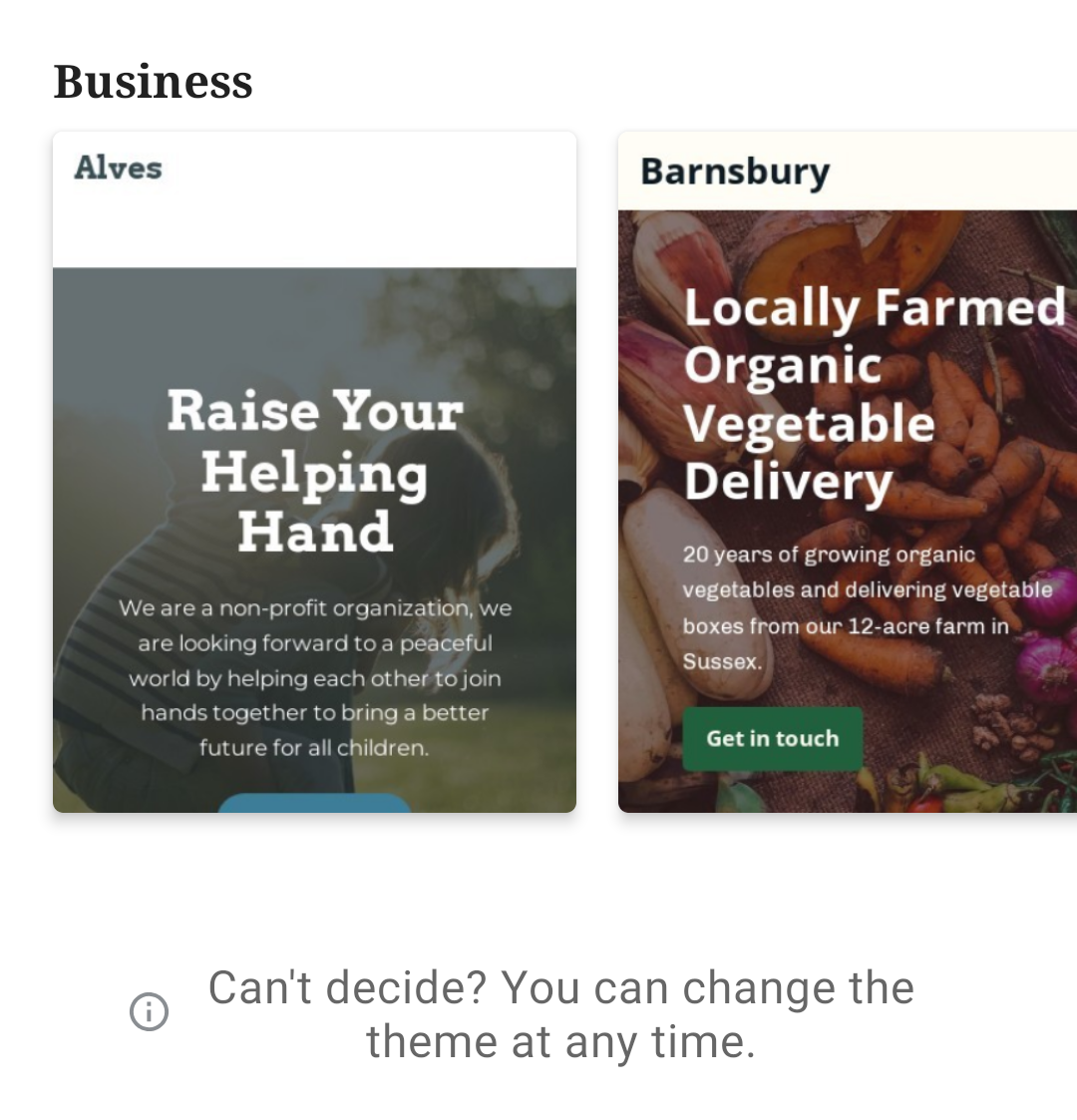

2. The style of the footer text might need a few adjustments to match the i3 design:

Expected	Actual

I was thinking that achieving this might be easier with reusing an existing style after we merge #16556.

[wpmobilebot]

Found 1 violations:

The PR caused the following dependency changes:

-+--- org.wordpress:fluxc:{strictly trunk-b1d4cb198c9c57cd80594171227dae5c96e58d56} -> trunk-b1d4cb198c9c57cd80594171227dae5c96e58d56
-|    +--- org.wordpress:wellsql:1.7.0
-|    |    \--- org.wordpress.wellsql:wellsql-annotations:1.7.0
-|    +--- org.wordpress.fluxc:fluxc-annotations:trunk-b1d4cb198c9c57cd80594171227dae5c96e58d56
-|    +--- org.greenrobot:eventbus:3.3.1 (*)
-|    +--- com.squareup.okhttp3:okhttp:4.9.0 -> 4.9.2 (*)
-|    +--- com.android.volley:volley:1.1.1 -> 1.2.0
-|    +--- androidx.paging:paging-runtime:2.1.2
-|    |    +--- androidx.paging:paging-common:2.1.2
-|    |    |    +--- androidx.annotation:annotation:1.0.0 -> 1.2.0
-|    |    |    \--- androidx.arch.core:core-common:2.0.0 -> 2.1.0 (*)
-|    |    +--- androidx.arch.core:core-runtime:2.0.0 -> 2.1.0 (*)
-|    |    +--- androidx.lifecycle:lifecycle-runtime:2.0.0 -> 2.3.1 (*)
-|    |    +--- androidx.lifecycle:lifecycle-livedata:2.0.0 -> 2.2.0 (*)
-|    |    \--- androidx.recyclerview:recyclerview:1.0.0 -> 1.1.0 (*)
-|    +--- com.goterl:lazysodium-android:5.0.2
-|    +--- net.java.dev.jna:jna:5.5.0
-|    +--- org.jetbrains.kotlin:kotlin-stdlib-jdk8:1.6.10 (*)
-|    +--- org.jetbrains.kotlin:kotlin-android-extensions-runtime:1.6.10 (*)
-|    +--- androidx.appcompat:appcompat:1.0.2 -> 1.3.1 (*)
-|    +--- androidx.recyclerview:recyclerview:1.0.0 -> 1.1.0 (*)
-|    +--- androidx.exifinterface:exifinterface:1.0.0 -> 1.1.0-beta01 (*)
-|    +--- com.squareup.okhttp3:okhttp-urlconnection:4.9.0 -> 4.9.2
-|    |    +--- com.squareup.okhttp3:okhttp:4.9.2 (*)
-|    |    \--- org.jetbrains.kotlin:kotlin-stdlib-jdk8:1.4.10 -> 1.6.10 (*)
-|    +--- com.google.code.gson:gson:2.8.5
-|    +--- org.apache.commons:commons-text:1.1 (*)
-|    +--- androidx.room:room-runtime:2.4.2 (*)
-|    +--- androidx.room:room-ktx:2.4.2
-|    |    +--- androidx.room:room-common:2.4.2 (*)
-|    |    +--- androidx.room:room-runtime:2.4.2 (*)
-|    |    +--- org.jetbrains.kotlin:kotlin-stdlib:1.6.10 (*)
-|    |    \--- org.jetbrains.kotlinx:kotlinx-coroutines-android:1.5.2 (*)
-|    +--- com.google.dagger:dagger:2.29.1 -> 2.41 (*)
-|    +--- org.jetbrains.kotlinx:kotlinx-coroutines-core:1.3.9 -> 1.5.2 (*)
-|    \--- org.jetbrains.kotlinx:kotlinx-coroutines-android:1.3.9 -> 1.5.2 (*)
++--- org.wordpress:fluxc:{strictly 1.42.0} -> 1.42.0
+|    +--- org.wordpress:wellsql:1.7.0
+|    |    \--- org.wordpress.wellsql:wellsql-annotations:1.7.0
+|    +--- org.wordpress.fluxc:fluxc-annotations:1.42.0
+|    +--- org.greenrobot:eventbus:3.3.1 (*)
+|    +--- com.squareup.okhttp3:okhttp:4.9.0 -> 4.9.2 (*)
+|    +--- com.android.volley:volley:1.1.1 -> 1.2.0
+|    +--- androidx.paging:paging-runtime:2.1.2
+|    |    +--- androidx.paging:paging-common:2.1.2
+|    |    |    +--- androidx.annotation:annotation:1.0.0 -> 1.2.0
+|    |    |    \--- androidx.arch.core:core-common:2.0.0 -> 2.1.0 (*)
+|    |    +--- androidx.arch.core:core-runtime:2.0.0 -> 2.1.0 (*)
+|    |    +--- androidx.lifecycle:lifecycle-runtime:2.0.0 -> 2.3.1 (*)
+|    |    +--- androidx.lifecycle:lifecycle-livedata:2.0.0 -> 2.2.0 (*)
+|    |    \--- androidx.recyclerview:recyclerview:1.0.0 -> 1.1.0 (*)
+|    +--- com.goterl:lazysodium-android:5.0.2
+|    +--- net.java.dev.jna:jna:5.5.0
+|    +--- org.jetbrains.kotlin:kotlin-stdlib-jdk8:1.6.10 (*)
+|    +--- org.jetbrains.kotlin:kotlin-android-extensions-runtime:1.6.10 (*)
+|    +--- androidx.appcompat:appcompat:1.0.2 -> 1.3.1 (*)
+|    +--- androidx.recyclerview:recyclerview:1.0.0 -> 1.1.0 (*)
+|    +--- androidx.exifinterface:exifinterface:1.0.0 -> 1.1.0-beta01 (*)
+|    +--- com.squareup.okhttp3:okhttp-urlconnection:4.9.0 -> 4.9.2
+|    |    +--- com.squareup.okhttp3:okhttp:4.9.2 (*)
+|    |    \--- org.jetbrains.kotlin:kotlin-stdlib-jdk8:1.4.10 -> 1.6.10 (*)
+|    +--- com.google.code.gson:gson:2.8.5
+|    +--- org.apache.commons:commons-text:1.1 (*)
+|    +--- androidx.room:room-runtime:2.4.2 (*)
+|    +--- androidx.room:room-ktx:2.4.2
+|    |    +--- androidx.room:room-common:2.4.2 (*)
+|    |    +--- androidx.room:room-runtime:2.4.2 (*)
+|    |    +--- org.jetbrains.kotlin:kotlin-stdlib:1.6.10 (*)
+|    |    \--- org.jetbrains.kotlinx:kotlinx-coroutines-android:1.5.2 (*)
+|    +--- com.google.dagger:dagger:2.29.1 -> 2.41 (*)
+|    +--- org.jetbrains.kotlinx:kotlinx-coroutines-core:1.3.9 -> 1.5.2 (*)
+|    \--- org.jetbrains.kotlinx:kotlinx-coroutines-android:1.3.9 -> 1.5.2 (*)
 \--- org.wordpress:login:0.14.0
-     \--- org.wordpress:fluxc:trunk-1436f46fc296ede0e65e117bbfced38fa34cec6d -> trunk-b1d4cb198c9c57cd80594171227dae5c96e58d56 (*)
+     \--- org.wordpress:fluxc:trunk-1436f46fc296ede0e65e117bbfced38fa34cec6d -> 1.42.0 (*)

Please review and act accordingly

[mkevins]

Thanks for reviewing and testing Ovi, and for the great feedback!

I was thinking that achieving this might be easier with reusing an existing style after we merge #16556.

Spot on. I was hoping to consolidate some of this to be less ad-hoc, and the PR mentioned allows that. I updated to use that, and adjusted a few other things (01d5a85) (e.g. the icon was dark in dark mode, and that should be fixed now).

Sometimes the Choose a theme screen starts scrolled to the bottom of the recycler view (this happens only when the device is proxied to use a wpcom sandbox with the pending api changes active):

I observed this too, even without sandboxing. I believe what is happening is that the footer is displayed without any items, and when the fetch response comes back, the items are added, but the recycler view maintains the scroll position to be aligned with the footer. I pushed a change (3812665) which should fix this by conditionally displaying the footer, only when there are items.

This is ready for another pass. 👍

[ovitrif]

Thanks for reviewing and testing Ovi, and for the great feedback!

I was thinking that achieving this might be easier with reusing an existing style after we merge #16556.

Spot on. I was hoping to consolidate some of this to be less ad-hoc, and the PR mentioned allows that. I updated to use that, and adjusted a few other things (01d5a85) (e.g. the icon was dark in dark mode, and that should be fixed now).

Sometimes the Choose a theme screen starts scrolled to the bottom of the recycler view (this happens only when the device is proxied to use a wpcom sandbox with the pending api changes active):

I observed this too, even without sandboxing. I believe what is happening is that the footer is displayed without any items, and when the fetch response comes back, the items are added, but the recycler view maintains the scroll position to be aligned with the footer. I pushed a change (3812665) which should fix this by conditionally displaying the footer, only when there are items.

This is ready for another pass. 👍

I gave this another pass and I feel it's ready to be merged:

• the issue when the list was scrolled to the bottom (with the helper text visible) didn't reproduce
• the design looks good and conforms to the design
• Different variations -- dark mode, tablet, landscape -- look nice

Thank you for your work on this @mkevins 🙇
