[SPARK-32696][SQL][test-hive1.2][test-hadoop2.7]Get columns operation should handle interval column properly #29539

yaooqinn · 2020-08-25T10:12:22Z

What changes were proposed in this pull request?

This PR let JDBC clients identify spark interval columns properly.

Why are the changes needed?

JDBC users can query interval values through thrift server, create views with interval columns, e.g.

CREATE global temp view view1 as select interval 1 day as i;

but when they want to get the details of the columns of view1, the will fail with Unrecognized type name: INTERVAL

Caused by: java.lang.IllegalArgumentException: Unrecognized type name: INTERVAL
	at org.apache.hadoop.hive.serde2.thrift.Type.getType(Type.java:170)
	at org.apache.spark.sql.hive.thriftserver.ThriftserverShimUtils$.toJavaSQLType(ThriftserverShimUtils.scala:53)
	at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.$anonfun$addToRowSet$1(SparkGetColumnsOperation.scala:157)
	at scala.collection.Iterator.foreach(Iterator.scala:941)
	at scala.collection.Iterator.foreach$(Iterator.scala:941)
	at scala.collection.AbstractIterator.foreach(Iterator.scala:1429)
	at scala.collection.IterableLike.foreach(IterableLike.scala:74)
	at scala.collection.IterableLike.foreach$(IterableLike.scala:73)
	at org.apache.spark.sql.types.StructType.foreach(StructType.scala:102)
	at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.addToRowSet(SparkGetColumnsOperation.scala:149)
	at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.$anonfun$runInternal$6(SparkGetColumnsOperation.scala:113)
	at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.$anonfun$runInternal$6$adapted(SparkGetColumnsOperation.scala:112)
	at scala.Option.foreach(Option.scala:407)
	at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.$anonfun$runInternal$5(SparkGetColumnsOperation.scala:112)
	at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.$anonfun$runInternal$5$adapted(SparkGetColumnsOperation.scala:111)
	at scala.collection.mutable.ResizableArray.foreach(ResizableArray.scala:62)
	at scala.collection.mutable.ResizableArray.foreach$(ResizableArray.scala:55)
	at scala.collection.mutable.ArrayBuffer.foreach(ArrayBuffer.scala:49)
	at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.runInternal(SparkGetColumnsOperation.scala:111)
	... 34 more

Does this PR introduce any user-facing change?

YES,

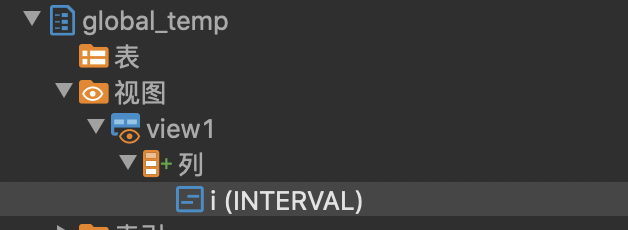

before

after

How was this patch tested?

new tests

… properly

yaooqinn · 2020-08-25T10:16:02Z

cc @maropu @cloud-fan thanks a bunch~

SparkQA · 2020-08-25T10:51:15Z

Test build #127884 has finished for PR 29539 at commit 44cf73b.

This patch fails Spark unit tests.
This patch merges cleanly.
This patch adds no public classes.

SparkQA · 2020-08-25T10:57:45Z

Test build #127885 has finished for PR 29539 at commit ae9d76a.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

yaooqinn · 2020-08-25T12:28:22Z

retest this please

SparkQA · 2020-08-25T13:09:07Z

Test build #127890 has finished for PR 29539 at commit ae9d76a.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

cloud-fan · 2020-08-25T13:19:28Z

also cc @bogdanghit @juliuszsompolski

SparkQA · 2020-08-26T03:13:12Z

Test build #127907 has finished for PR 29539 at commit bd3e692.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

bogdanghit · 2020-08-26T11:48:20Z

...rver/src/test/scala/org/apache/spark/sql/hive/thriftserver/SparkMetadataOperationSuite.scala

    }
  }
+
+  test("get columns operation should handle interval column properly") {


Nit: Can we also test an extract query of the table with calendar types?

This PR fixes SparkGetColumnsOperation. As a meta operation, it is not related to extract-queries that executed by SparkExecuteStatementOperation. BTW, I notice that test cases for extracting interval values in VIEWS through the thrift server might be missing in the current codebase. Maybe we can make another PR to improve these, WDYT, @cloud-fan Or I can just add some UTs here https://github.com/yaooqinn/spark/blob/d24d27f1bc39e915df23d65f8fda0d83e716b308/sql/hive-thriftserver/src/test/scala/org/apache/spark/sql/hive/thriftserver/HiveThriftServer2Suites.scala#L674

That's why I think we should add a small check here to make sure they actually work.

I'm OK to add the missing test in this PR.

done, thank you guys for the check~

bogdanghit

LGTM, pending extending / adding the test.

SparkQA · 2020-08-27T03:33:12Z

Test build #127944 has finished for PR 29539 at commit d3888d4.

This patch passes all tests.
This patch merges cleanly.
This patch adds no public classes.

cloud-fan · 2020-08-27T06:52:32Z

thanks, merging to master!

juliuszsompolski · 2020-08-27T07:31:39Z

...ftserver/src/test/scala/org/apache/spark/sql/hive/thriftserver/HiveThriftServer2Suites.scala

+    withJdbcStatement(viewName1, viewName2) { statement =>
+      statement.executeQuery(ddl1)
+      statement.executeQuery(ddl2)
+      val rs = statement.executeQuery(s"SELECT v1.i as a, v2.i as b FROM global_temp.$viewName1" +


What will be returned by rs.getMetadata.getColumnType for the interval column?
I believe that will be a string, because of how we just make it a string in the output schema in https://github.com/apache/spark/blob/master/sql/hive-thriftserver/src/main/scala/org/apache/spark/sql/hive/thriftserver/SparkExecuteStatementOperation.scala#L362

There was a discussion last year in #25694 (comment), that because the interval is just returned as string in the query output schema, and not compliant to standard SQL interval types, it should not be listed by SparkGetTypeInfoOperation, and be treated just as strings.

If we want to make it be returned as a java.sql.Types.OTHER, to make this complete, it should be returned as such in result set metadata as well, and listed in SparkGetTypeInfoOperation.
Or we could map it to string.

the ResultSetMetadata describes the return types of the result set, the GetColumnOperation retrieves the metadata of the original table or view. IMHO, they do not have to be the same.

I will make a followup to add it to SparkGetTypeInfoOperation

It would be the most consistent if the table columns metadata, and metadata of the result of select * from table had consistent types. I don't really have a preference whether it should be string or interval. Last year the discussion leaned towards string, because of the intervals not really being standard compliant, but indeed there might be value in having it marked as interval in the schema, so the application might try to parse it as such... Though, e.g. between Spark 2.4 and Spark 3.0 the format of the returned interval changed, see https://issues.apache.org/jira/browse/SPARK-32132, which might have broken how anyone would have parsed it, so Spark is not really giving any guarantees as to the stability of the format of this type...

Ultimately, I think this is very rarely used, as intervals didn't even work at all until #25277 and it was not raised earlier...

The ResultSetMetadata is used by the client-side user to do the right work on the result set what they get，when the interval values become strings, they need to follow the rules of String operations in their future activities.

The GetColumnOperation tells the client-side users about how the data is stored and formed at the server-side, then if the JDBC-users know column A is an interval type, then they should notice that they can not perform string functions, comparators, etc on column A.

In ResultSetMetadata would the client-side user not learn that they should follow string rules by using getColumnClassName, which should return String, while it would be still valuable to them to know that that column represents an interval?

cloud-fan · 2020-08-27T08:07:07Z

...rver/src/test/scala/org/apache/spark/sql/hive/thriftserver/SparkMetadataOperationSuite.scala

+        assert(rowSet.getString("TABLE_NAME") === viewName)
+        assert(rowSet.getString("COLUMN_NAME") === "i")
+        assert(rowSet.getInt("DATA_TYPE") === java.sql.Types.OTHER)
+        assert(rowSet.getString("TYPE_NAME").equalsIgnoreCase(CalendarIntervalType.sql))


if we treat it as string type, can we still report the TYPE_NAME as INTERVAL?

I guess that all the meta operations should do nothing else but specifically describe how all the objects(database/table /columns etc) stored in the Spark system.

If we change the column meta here from INTERVAL to STRING, so the column here becomes orderable and comparable?(JDBC users may guess), they may have no idea about what they are dealing with and get a completely different awareness of the meta-information comparing to those users who use spark-sql self-contained applications.

…column properly ### What changes were proposed in this pull request? This PR let JDBC clients identify ANSI interval columns properly. ### Why are the changes needed? This PR is similar to #29539. JDBC users can query interval values through thrift server, create views with ansi interval columns, e.g. `CREATE global temp view view1 as select interval '1-1' year to month as I;` but when they want to get the details of the columns of view1, the will fail with `Unrecognized type name: YEAR-MONTH INTERVAL` ``` Caused by: java.lang.IllegalArgumentException: Unrecognized type name: YEAR-MONTH INTERVAL at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.toJavaSQLType(SparkGetColumnsOperation.scala:190) at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.$anonfun$addToRowSet$1(SparkGetColumnsOperation.scala:206) at scala.collection.immutable.List.foreach(List.scala:392) at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.addToRowSet(SparkGetColumnsOperation.scala:198) at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.$anonfun$runInternal$7(SparkGetColumnsOperation.scala:109) at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.$anonfun$runInternal$7$adapted(SparkGetColumnsOperation.scala:109) at scala.Option.foreach(Option.scala:407) at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.$anonfun$runInternal$5(SparkGetColumnsOperation.scala:109) at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.$anonfun$runInternal$5$adapted(SparkGetColumnsOperation.scala:107) at scala.collection.mutable.ResizableArray.foreach(ResizableArray.scala:62) at scala.collection.mutable.ResizableArray.foreach$(ResizableArray.scala:55) at scala.collection.mutable.ArrayBuffer.foreach(ArrayBuffer.scala:49) at org.apache.spark.sql.hive.thriftserver.SparkGetColumnsOperation.runInternal(SparkGetColumnsOperation.scala:107) ... 34 more ``` ### Does this PR introduce _any_ user-facing change? Yes. Let hive JDBC recognize ANSI interval. ### How was this patch tested? Jenkins test. Closes #32345 from beliefer/SPARK-35085. Lead-authored-by: gengjiaan <[email protected]> Co-authored-by: beliefer <[email protected]> Signed-off-by: Max Gekk <[email protected]>

[SPARK-32696][SQL]Get columns operation should handle interval column…

44cf73b

… properly

probot-autolabeler bot added the SQL label Aug 25, 2020

fix

ae9d76a

yaooqinn changed the title ~~[SPARK-32696][SQL]Get columns operation should handle interval column properly~~ [SPARK-32696][SQL][test-hive1.2][test-hadoop2.7]Get columns operation should handle interval column properly Aug 25, 2020

set column size to 16

bd3e692

bogdanghit reviewed Aug 26, 2020

View reviewed changes

bogdanghit approved these changes Aug 26, 2020

View reviewed changes

add test

d3888d4

cloud-fan closed this in f14f374 Aug 27, 2020

juliuszsompolski reviewed Aug 27, 2020

View reviewed changes

cloud-fan reviewed Aug 27, 2020

View reviewed changes

beliefer mentioned this pull request Apr 26, 2021

[SPARK-35085][SQL] Get columns operation should handle ANSI interval column properly #32345

Closed

[SPARK-32696][SQL][test-hive1.2][test-hadoop2.7]Get columns operation should handle interval column properly #29539
